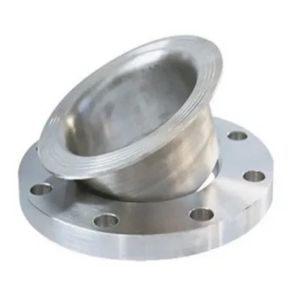

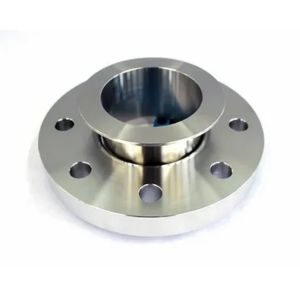

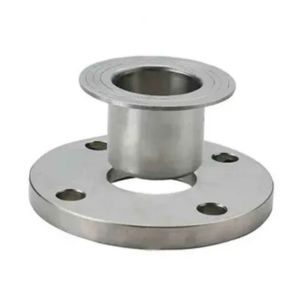

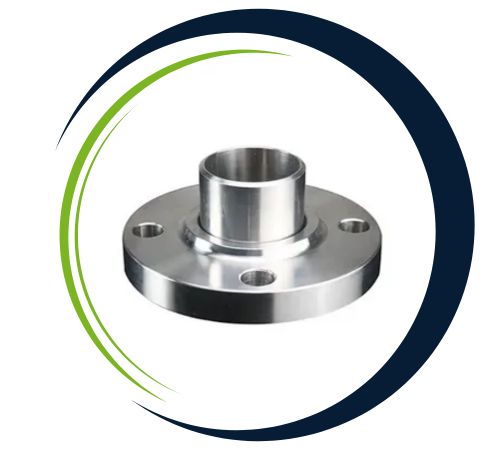

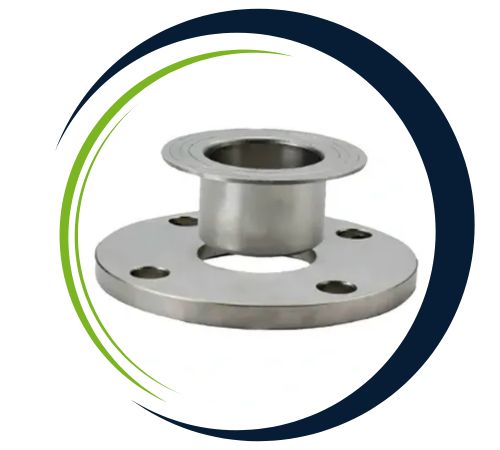

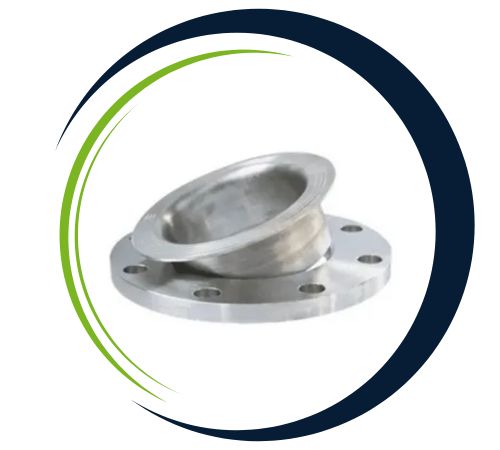

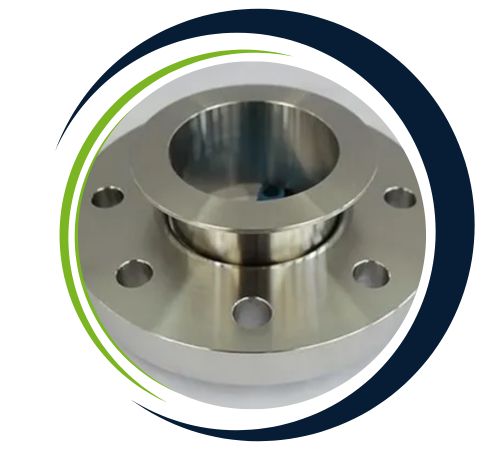

Harsh Flanges is a leading Mumbai, India-based manufacturer and supplier of Titanium Lap Joint Flanges. Famed for precision engineering, the organization serves industries like petrochemical, marine, chemical processing, and power generation. By conforming to global standards and employing cutting-edge manufacturing methods, Harsh Flanges produces excellent quality titanium flanges that promise stability and dependability in diverse applications. Its adherence to excellence earns it a trusted ally for industries demanding strong and corrosion-proof flange solutions.

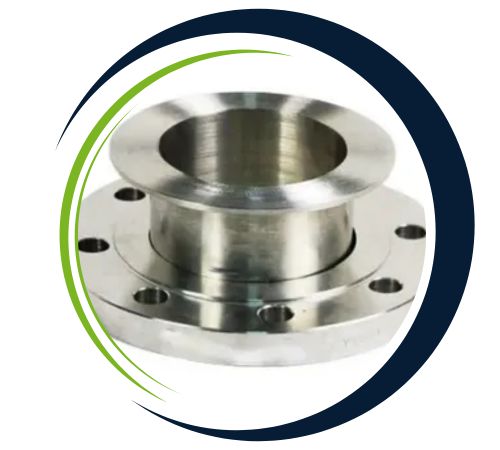

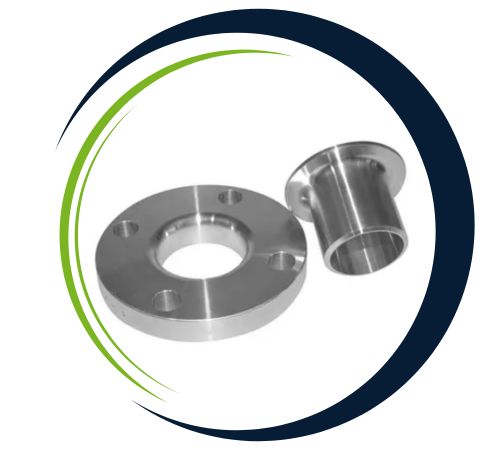

Titanium Lap Joint Flanges are mainly made up of titanium alloys such as Grade 2 (commercially pure titanium) or Grade 5 (Ti-6Al-4V). Grade 2 titanium is made up of about 99.2% titanium with small levels of carbon, iron, and other impurities. Grade 5 titanium, an alloy of 90% titanium, 6% aluminum, and 4% vanadium, has improved strength and corrosion resistance. It has a tensile strength of about 344 MPa, yield strength of 275 MPa, and an elongation of 20%, which is a strength-ductility balance appropriate for many industrial uses.
| Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | ||||||||||
| 1/2 | 15 | 90 | 30 | 16 | 22.9 | 60.3 | 11.2 | 3 | 4 | 1/2 | 50 | 55 | 5/8 | M14 | 0.8 |
| 3/4 | 20 | 100 | 38 | 16 | 28.2 | 69.9 | 12.7 | 3 | 4 | 1/2 | 50 | 65 | 5/8 | M14 | 0.9 |
| 1 | 25 | 110 | 49 | 17 | 34.9 | 79.4 | 14.3 | 3 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 0.9 |
| 1 1/4 | 32 | 115 | 59 | 21 | 43.7 | 88.9 | 15.9 | 5 | 4 | 1/2 | 55 | 70 | 5/8 | M14 | 1.4 |
| 1 1/2 | 40 | 125 | 65 | 22 | 50 | 98.4 | 17.5 | 6 | 4 | 1/2 | 65 | 70 | 5/8 | M14 | 1.4 |
| 2 | 50 | 150 | 78 | 25 | 62.5 | 120.7 | 19.1 | 8 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 2.3 |
| 2 1/2 | 65 | 180 | 90 | 29 | 75.4 | 139.7 | 22.3 | 8 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
| 3 | 80 | 190 | 108 | 30 | 91.4 | 152.4 | 23.9 | 10 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.7 |
| 3 1/2 | 90 | 215 | 122 | 32 | 104.1 | 177.8 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5 |
| 4 | 100 | 230 | 135 | 33 | 116.8 | 190.5 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5.9 |
| 5 | 125 | 255 | 164 | 36 | 144.4 | 215.9 | 23.9 | 11 | 8 | 3/4 | 85 | 95 | 7/8 | M20 | 6.8 |
| 6 | 150 | 280 | 192 | 40 | 171.4 | 241.3 | 25.4 | 13 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 8.6 |
| 8 | 200 | 345 | 246 | 44 | 222.2 | 298.5 | 28.6 | 13 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 13.7 |
| 10 | 250 | 405 | 305 | 49 | 277.4 | 362 | 30.2 | 13 | 12 | 7/8 | 100 | 115 | 1 | M24 | 19.5 |
| 12 | 300 | 485 | 365 | 56 | 328.2 | 431.8 | 31.8 | 13 | 12 | 7/8 | 100 | 120 | 1 | M24 | 29 |
| 14 | 350 | 535 | 400 | 79 | 360.2 | 476.3 | 35 | 13 | 12 | 1 | 115 | 135 | 1 1/8 | M27 | 41 |
| 16 | 400 | 595 | 457 | 87 | 411.2 | 539.8 | 36.6 | 13 | 16 | 1 | 115 | 135 | 1 1/8 | M27 | 54 |
| 18 | 450 | 635 | 505 | 97 | 462.3 | 577.9 | 39.7 | 13 | 16 | 1 1/8 | 125 | 145 | 1 1/4 | M30 | 59 |
| 20 | 500 | 700 | 559 | 103 | 514.4 | 635 | 42.9 | 13 | 20 | 1 1/8 | 140 | 160 | 1 1/4 | M30 | 75 |
| 24 | 600 | 815 | 663 | 111 | 616 | 749.3 | 47.9 | 13 | 20 | 1 1/4 | 150 | 170 | 1 3/8 |
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of Titanium Lap Joint Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Lap Joint Flanges are applied in situations where there is constant disassembly and corrosion protection. They are particularly well-suited for piping systems in chemical plants, offshore platforms, and marine industries. Their construction facilitates ease of alignment and rotation, making them easy to maintain and inspect. Further, these flanges are utilized in power plants and desalination plants, where high strength and resistance against tough conditions are significant. In all, Titanium Lap Joint Flanges provide an efficient solution for systems that demand dependable and serviceable connections.
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
| 0.2% Proof Stress | Tensile Strength | Elongation | |
| MPa | MPa | % | |
| Annealed | 275-450 | 345 | 20 |
Yes, we offer custom sizes for Titanium Lap Joint Flange to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
