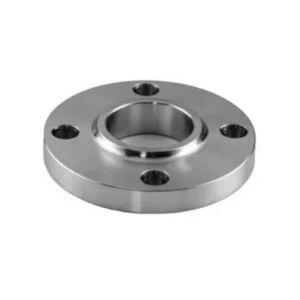

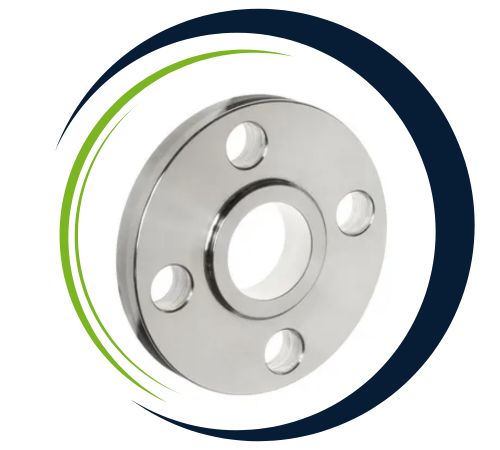

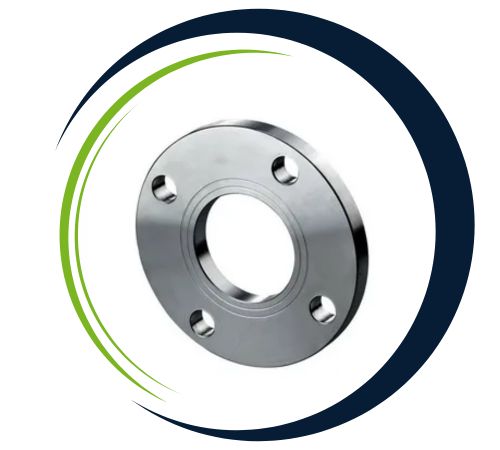

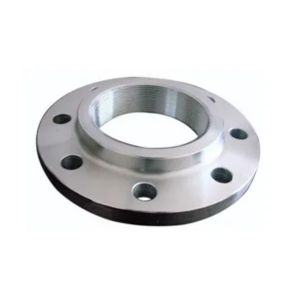

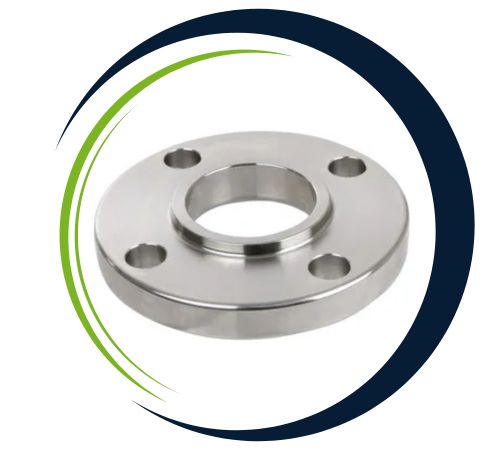

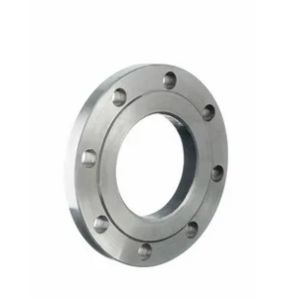

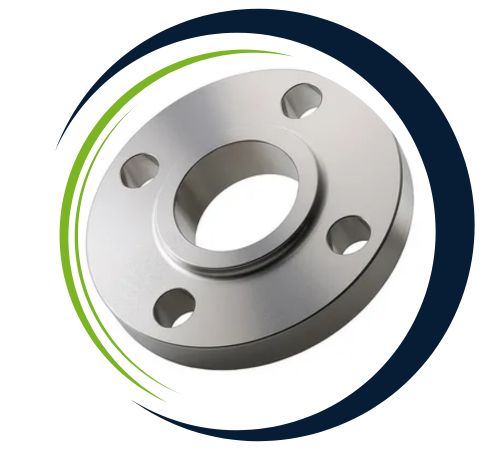

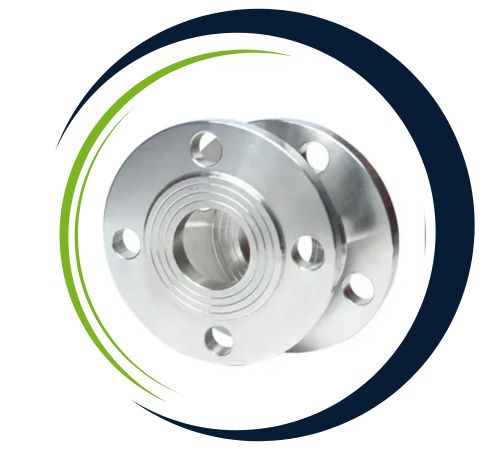

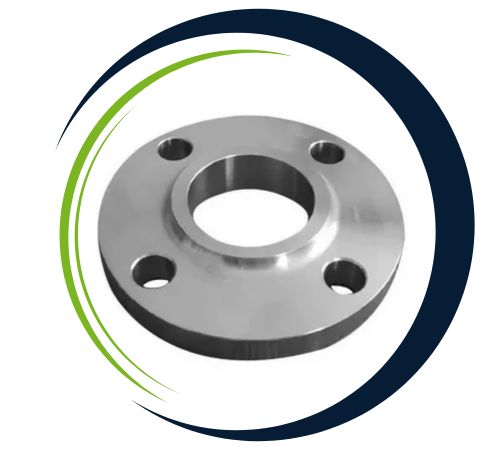

Harsh Flanges is a preeminent manufacturer and supplier company in Mumbai, India, that focuses on high-quality Titanium Flat Flanges. We provide a wide range of titanium flanges, such as Grade 2 (UNS R50400) and Grade 5 (UNS R56400), for various industrial uses. Our products are designed according to international standards to deliver optimum performance and reliability. Being reliable suppliers, we cater to customers in different industries with customized solutions to suit individual needs. Harsh Flanges is a reflection of quality and innovation within the titanium flange business.
Titanium Flat Flanges consist mainly of titanium alloys, of which Grade 2 (UNS R50400) has a minimum of 99.2% titanium while Grade 5 (UNS R56400) has 90% titanium, in addition to aluminum (6%) and vanadium (4%). Grade 2 flanges also contain trace amounts of carbon, iron, hydrogen, nitrogen, and oxygen. These alloys provide superior corrosion resistance, good strength-to-weight ratio, and excellent weldability, and hence are used in demanding applications across industries. Grade 2 flanges have a tensile strength of 344 MPa and yield strength of 275 MPa, whereas Grade 5 flanges have a tensile strength of 950 MPa and yield strength of 880 MPa. Such properties maintain durability and reliability under high-pressure and high-temperature conditions.
| Product Name | Titanium Flat Flanges |
|---|---|
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standards / Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605 |
| Titanium Flat Face Flanges / Connection Type | Flat Face Flange (FF), Raised Face Flange (RF), Ring Joint Flange (RTJ), Lap Joint Flange, Male and Female Flange (M&F), Large and Small Tongue-and-Groove Flange (T&G) |
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, ASA, API-605, MSS SP44, AWWA, Custom Drawings |
| Custom Design | As per your drawing | AS, BS, ANSI, DIN, JIS | Equal and Reducing Configurations |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103 |
| Test Certificates | 100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, etc |
| Tests | Hydrostatic testing machine, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment / Machines | Press machine, Pushing Machine, Bending machine, Sand-blasting machine, electric bevelling machine, etc. |
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of Titanium Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Flat Flanges are used widely across various industries because of their outstanding properties. In the aerospace industry, they are used in fuel systems and jet engines, where high strength and corrosion resistance are crucial. These flanges are also used for shipbuilding and offshore platforms in the marine industry, making use of their seawater corrosion resistance. They are utilized in piping systems for aggressive chemicals in chemical processing. Geothermal and nuclear power generation industries make use of titanium flanges for parts that are subjected to high pressures and temperatures. They are also appropriate for medical applications due to their lightness and durability, which helps minimize fatigue and wear in implants.
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 2 | R50400 | 3.7035 |
| Titanium Gr 5 | R56400 | 3.7165 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | .08 Max | .03 Max | .18 Max | .015 Max | Bal | .20 Max |
| Titanium Grade 4 | .08 Max | .05 Max | .40 Max | .015 Max | Bal | .50 Max |
| Titanium Grade 7 | .08 Max | .03 Max | .25 Max | .015 Max | Bal | .30 Max |
| Titanium Grade 9 | .08 Max | .03 Max | .15 Max | .015 Max | – | .25 Max |
| Titanium Grade 12 | .08 Max | .03 Max | .25 Max | 0.15 Max | – | .30 Max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 G/Cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| 4.43 G/Cm3 | 1632 °C (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
Yes, we offer custom sizes for Titanium Flat Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
