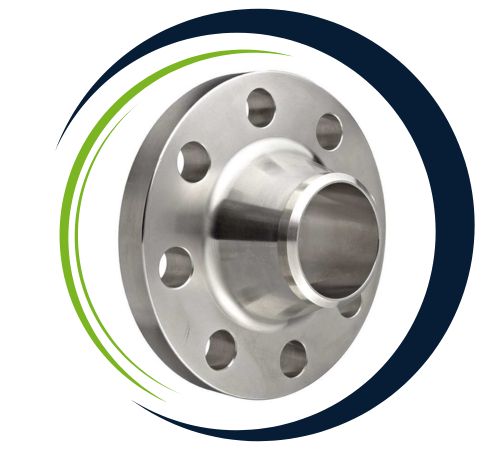

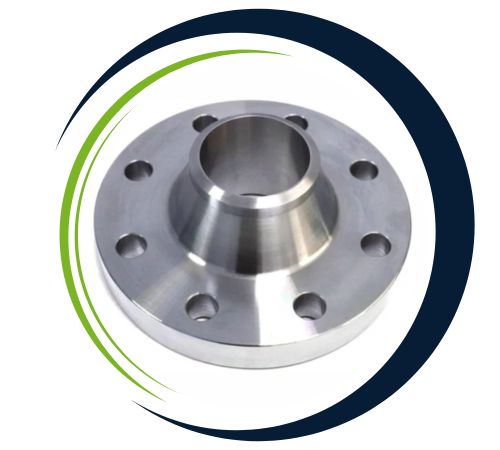

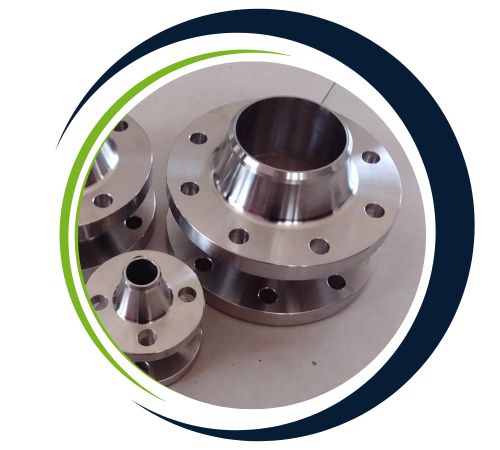

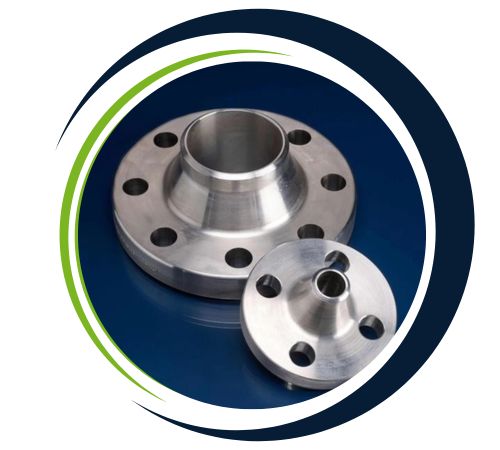

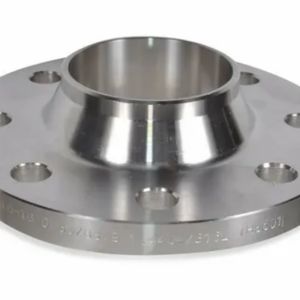

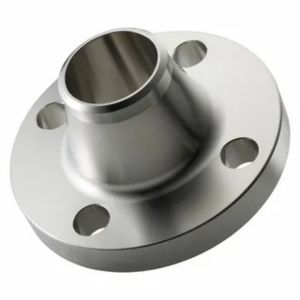

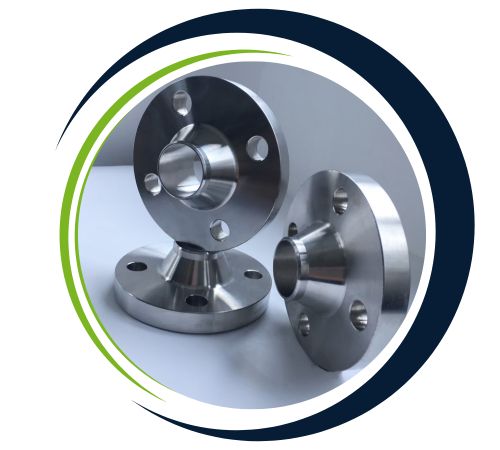

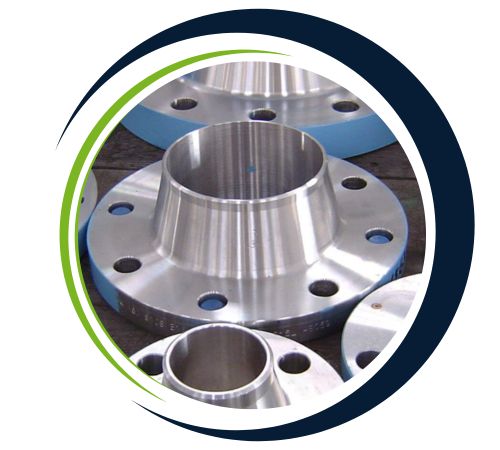

Harsh Flanges, based in Mumbai, India, stands out as a top manufacturer and supplier of Super Duplex Steel Weld Neck Flanges, focusing on grades like UNS S32750 and UNS S32760. These flanges are designed to handle high-pressure and high-temperature situations, providing remarkable strength and corrosion resistance. With a long tapered neck design, they ensure a smooth connection between the flange and pipe, which helps reduce turbulence and stress points. Harsh Flanges offers these components in a variety of sizes and specifications, adhering to international standards and catering to the diverse needs of industries such as oil and gas, chemical processing, and marine engineering.
When it comes to composition and mechanical properties, Super Duplex Steel Weld Neck Flanges are primarily made up of 24–26% chromium, 6–8% nickel, 3–5% molybdenum, and 0.24–0.32% nitrogen, with iron making up the rest. This unique blend gives them outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking, especially in environments rich in chlorides. On the mechanical side, they boast a minimum tensile strength of 116 ksi (800 MPa), yield strength of 80 ksi (550 MPa), and an elongation of 15%. These characteristics make them ideal for high-pressure and high-temperature applications, ensuring they remain durable and reliable even in tough conditions.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSuper Duplex Steel S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, S32750 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSuper Duplex Steel SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSuper Duplex Steel SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSuper Duplex Steel SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 Super Duplex Steel S32760 Super Duplex Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Super Duplex Steel S32750, S32950, S32760, F52, F53, F55, F52 |
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of Super Duplex Steel weldneck flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Super Duplex Steel Weld Neck Flanges find extensive use in industries that demand strong performance under extreme conditions. In the oil and gas industry, they are essential for offshore platforms and subsea pipelines, thanks to their ability to resist seawater corrosion. The chemical and petrochemical sectors rely on them for reactors and storage tanks that handle aggressive chemicals. Moreover, these flanges play a crucial role in power generation plants, desalination units, and marine engineering applications, where their strength and corrosion resistance help maintain the integrity and longevity of piping systems.
| ASME/ANSI B 16.5 | Welding Neck Flange |
| PRESSURE CLASS | 150, 300, 400, S32750, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, S32750, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange |
| PRESSURE CLASS | 300, 400, S32750, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, S32750, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Super Duplex Steel Weldneck flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
