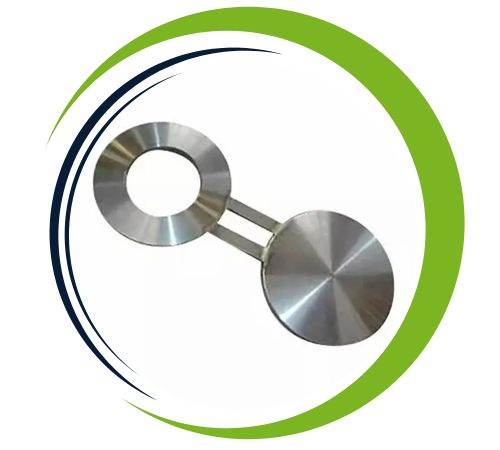

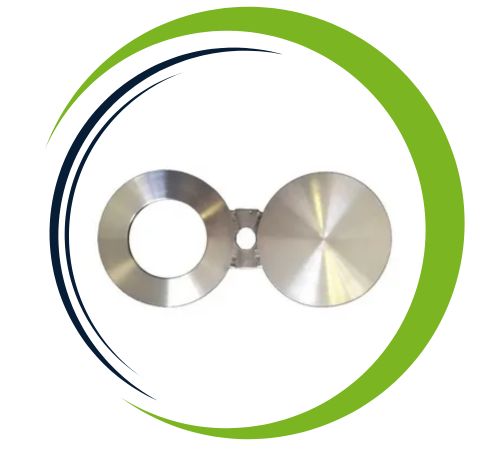

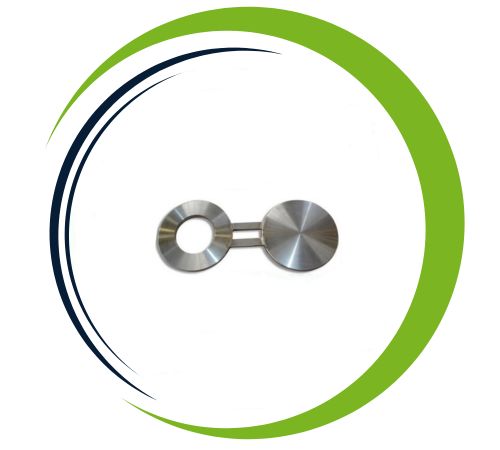

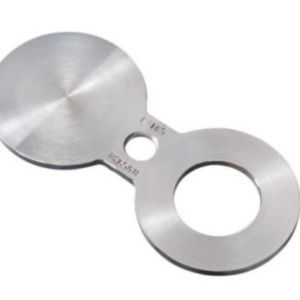

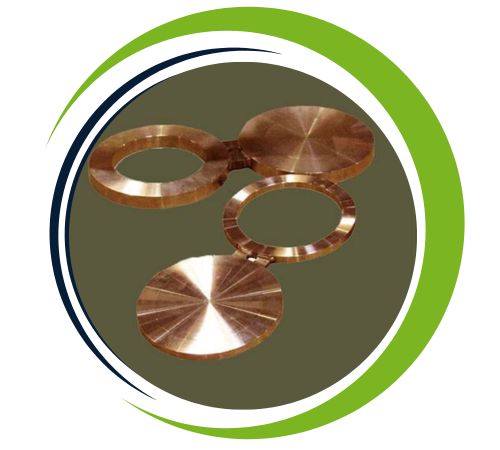

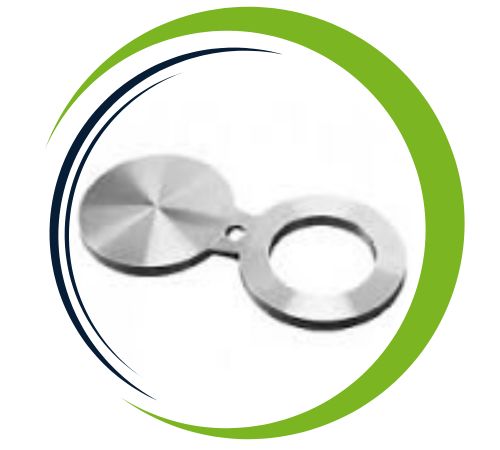

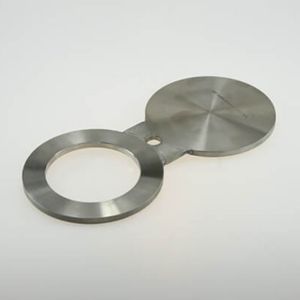

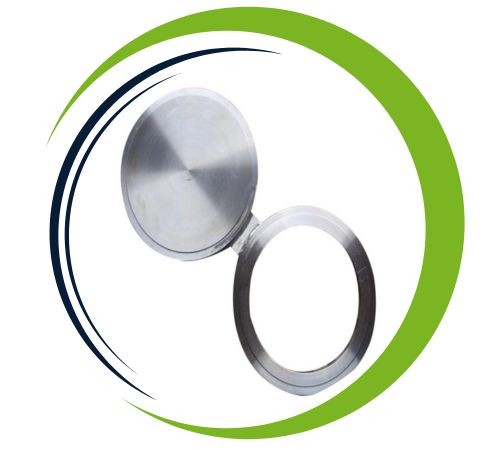

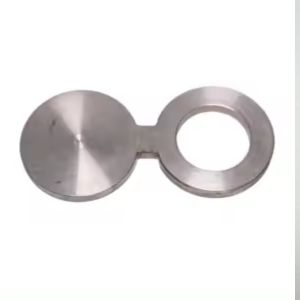

Harsh Flanges, based in Mumbai, India, stands out as a top manufacturer and supplier of high-quality Spacer Blinds Flanges, which are essential for effective flow control in piping systems. Often referred to as paddle spacers or spectacle blinds when used with blind flanges, these components play a crucial role in either blocking or allowing flow in pipelines, providing a safe and efficient way to isolate sections during maintenance or inspections. Crafted from premium-grade carbon steel, stainless steel, or alloy steel, our spacer blinds meet ASME, ANSI, and other international standards. Harsh Flanges is recognized for its precise fabrication, prompt delivery, and outstanding service in industrial pipeline solutions.
Spacer Blinds Flanges are generally constructed from materials like stainless steel (SS 304, 316), carbon steel (A105), or alloy steels, depending on the specific operating conditions. The stainless steel options offer excellent corrosion resistance, featuring 18–20% Chromium and 8–12% Nickel, while carbon steel delivers robust mechanical properties at a more affordable price. These flanges typically showcase tensile strength ranging from 485–620 MPa and yield strength between 250–310 MPa. They are engineered to uphold structural integrity under varying pressures and temperatures, ensuring dependable performance in systems that require periodic flow isolation or operational switching.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Spacer Blind Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS SP44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Spacer Blind Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Spacer Blinds Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Spacer Blind | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Spacer Blind UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Spacer Blind EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Spacer Blinds Production technique | Forged, Heat treated and machined |
| Spacer Blinds Connect Type / Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Spacer Blind Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Spacer Blinds Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Spacer Blind Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of Spacer Blind | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 F316 Stainless Steel Flanges |
| Spacer Blind Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Spacer Blinds Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi & Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of Spacer Blinds Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Spacer Blinds Flanges are mainly utilized in industries that need regular maintenance, inspection, or isolation of specific sections within a piping system. You’ll often find them in oil & gas, chemical processing, power generation, and offshore installations, where they enable operators to safely transition between open (spacer) and closed (blind) positions without the hassle of dismantling the line. They’re particularly suited for systems that transport hazardous or high-pressure fluids, providing both a visual and physical means of confirming the pipeline’s status. Their implementation significantly boosts workplace safety, especially during shutdowns or repairs, making them indispensable in any process system.
| ASME/ANSI B16.5 | Spacer Blind |
| PRESSURE CLASS | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| DIN EN 1092-1 Face Dimensions | PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400 |
| BS 4504 SEC 3.1, BS 4504[PART 1], BS 1560 BOSS | Spacer Blind |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Spacer Blinds Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
