Based in Mumbai, India, Harsh Flanges is a well-known manufacturer and supplier of premium screwed flanges for low-pressure piping systems. Often referred to as threaded flanges, these are perfect for uses where welding is not practical. Our screwed flanges are made in accordance with international standards like ANSI, ASME, and DIN, guaranteeing accurate measurements, robustness, and simplicity of installation. With timely delivery and competitive pricing in both domestic and foreign markets, Harsh Flanges is dedicated to providing dependable and corrosion-resistant flange solutions to industries such as water treatment, petrochemical, and oil and gas.

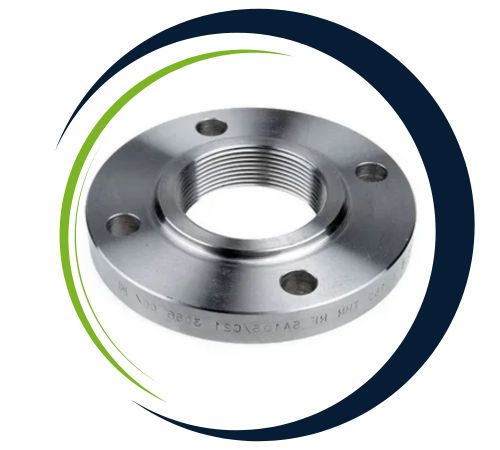

Depending on the use, screwed flanges are usually composed of alloy steel, carbon steel (A105), or stainless steel (304/316). For increased strength and resistance to corrosion, their chemical makeup may contain carbon, manganese, chromium, nickel, and molybdenum. These flanges have good ductility and impact resistance, with tensile strengths ranging from 450 to 620 MPa and yield strengths between 200 and 350 MPa. Screwed flanges, which are made for low to moderate pressure applications, offer safe pipe connections without the need for welding, which makes them perfect for systems that need to be disassembled or maintained frequently.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

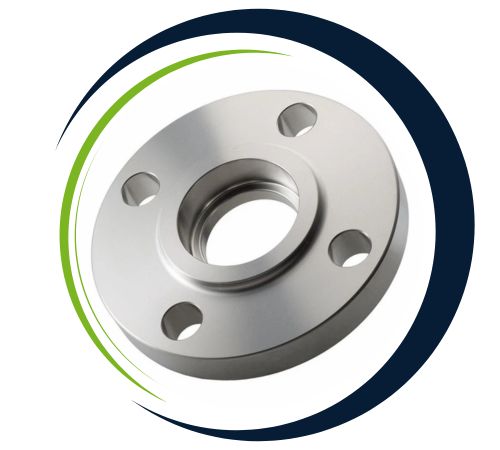

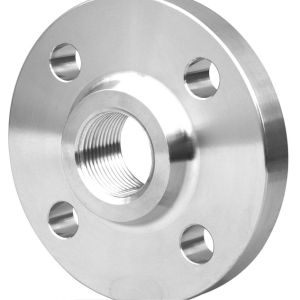

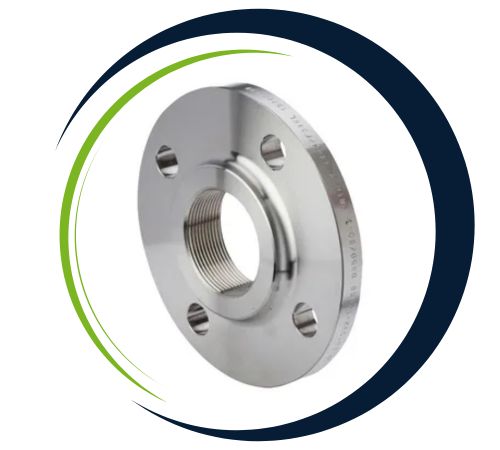

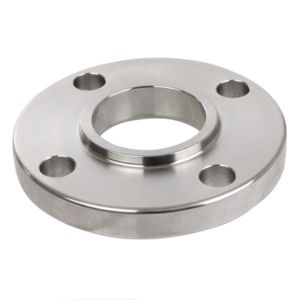

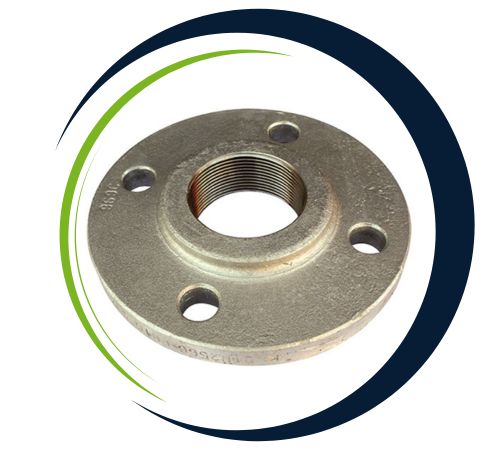

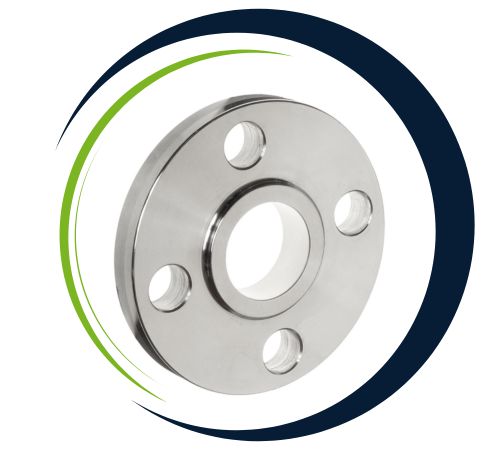

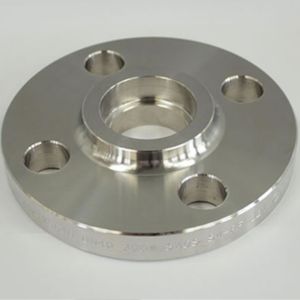

| Material | Brass Screwed Flange, Titanium Screwed Flange, Incoloy Screwed Flange, Nickel Alloy Screwed Flange, Super Duplex Screwed Flange, Monel Screwed Flange, Duplex Steel Screwed Flange, Copper Nickel Screwed Flange, Inconel Screwed Flange, Stainless Steel Screwed Flange, SMO 254 Screwed Flange, Hastelloy Screwed Flange, AISI 4130 Screwed Flange, Alloy 20 Screwed Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of Screwed Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Screwed flanges are frequently utilised in non-critical, low-pressure applications where welding is not desirable or feasible. For small-diameter piping in sectors like HVAC systems, fire safety, water treatment, plumbing, and oil and gas, these flanges are perfect. They are ideal for operations requiring a lot of maintenance because of their threaded design, which makes installation and disassembly simple. Additionally, compressed air systems, hydraulic piping configurations, and fuel and gas lines all make extensive use of screwed flanges. They are a popular option in settings that demand speedy assembly and operational flexibility because they can form a solid, leak-resistant connection without the need for welding.
| FLANGE NPS | Inside Diameter | Outside Diameter | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | H | Raised Face Thickness (T) | T1 | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2″ | 0.93″ | 3.75″ | 2.62″ | 1.38″ | .063″ | 1.50″ | 0.88″ | 0.50″ | 0.82″ | 0.62″ | 4 |
| 3/4″ | 1.14″ | 4.62″ | 3.25″ | 1.69″ | .063″ | 1.88″ | 1.00″ | .056″ | 0.94″ | 0.75″ | 4 |
| 1″ | 1.41″ | 4.88″ | 3.50″ | 2.00″ | .063″ | 2.12″ | 1.06″ | 0.63″ | 1.00″ | 0.75″ | 4 |
| 1-1/4″ | 1.75″ | 5.25″ | 3.88″ | 2.50″ | .063″ | 2.50″ | 1.06″ | 0.69″ | 1.00″ | 0.75″ | 4 |
| 1-1/2″ | 1.99″ | 6.12″ | 4.50″ | 2.88″ | .063″ | 2.75″ | 1.19″ | 0.75″ | 1.13″ | 0.88″ | 4 |
| 2″ | 2.50″ | 6.50″ | 5.00″ | 3.62″ | .063″ | 3.31″ | 1.31″ | 0.82″ | 1.25″ | 0.75″ | 8 |
| 2-1/2″ | 3.00″ | 7.50″ | 5.88″ | 4.12″ | .063″ | 3.94″ | 1.50″ | 0.94″ | 1.44″ | 0.88″ | 8 |
| 3″ | 3.63″ | 8.25″ | 6.62″ | 5.00″ | .063″ | 4.62″ | 1.69″ | 1.06″ | 1.63″ | 0.88″ | 8 |
| 3-1/2″ | 4.13″ | 9.00″ | 7.25″ | 5.50″ | .063″ | 5.25″ | 1.75″ | 1.13″ | 1.69″ | 0.88″ | 8 |
| 4″ | 4.63″ | 10.00″ | 7.88″ | 6.19″ | .063″ | 5.75″ | 1.88″ | 1.19″ | 1.82″ | 0.88″ | 8 |
| 5″ | 5.69″ | 11.00″ | 9.25″ | 7.31″ | .063″ | 7.00″ | 2.00″ | 1.32″ | 1.94″ | 0.88″ | 8 |
| 6″ | 6.75″ | 12.50″ | 10.62″ | 8.50″ | .063″ | 8.12″ | 2.06″ | 1.38″ | 2.00″ | 0.88″ | 12 |
| 8″ | 8.75″ | 15.00″ | 13.00″ | 10.62″ | .063″ | 10.25″ | 2.44″ | 1.56″ | 2.38″ | 1.00″ | 12 |
| 10″ | 10.88″ | 17.50″ | 15.25″ | 12.75″ | .063″ | 12.62″ | 2.62″ | 1.82″ | 2.56″ | 1.12″ | 16 |
| 12″ | 12.94″ | 20.50″ | 17.75″ | 15.00″ | .063″ | 14.75″ | 2.88″ | 1.94″ | 2.82″ | 1.25″ | 16 |
| 14″ | 14.19″ | 23.00″ | 20.25″ | 16.25″ | .063″ | 16.75″ | 3.00″ | 2.06″ | 2.94″ | 1.25″ | 20 |
| 16″ | 16.19″ | 25.50″ | 22.50″ | 18.50″ | .063″ | 19.00″ | 3.25″ | 2.19″ | 3.19″ | 1.38″ | 20 |
| 18″ | 18.19″ | 28.00″ | 24.75″ | 21.00″ | .063″ | 21.00″ | 3.50″ | 2.32″ | 3.44″ | 1.38″ | 24 |
| 20″ | 20.19″ | 30.50″ | 27.00″ | 23.00″ | .063″ | 23.12″ | 3.75″ | 2.44″ | 3.69″ | 1.38″ | 24 |
| 22″ | 22.19″ | 33.00″ | 29.25″ | 25.25″ | .063″ | 25.25″ | 4.00″ | 2.57″ | 3.94″ | 1.63″ | 24 |
| 24″ | 24.19″ | 36.00″ | 32.00″ | 27.25″ | .063″ | 27.62″ | 4.19″ | 2.69″ | 4.13″ | 1.62″ | 24 |
| Pipe Size | 150 # | 300 # | 600 # | 900 # | 1500 # | 2500 # | ||||||||||||
| WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | |
| 1/2″ | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 2 | SEE 1500 # WEIGHTS | 5 | 4 | 4 | 7 | 7 | 7 | ||
| 3/4″ | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 3 | 3 | SEE 1500 # WEIGHTS | 6 | 5 | 6 | 8 | 8 | 8 | ||
| 1″ | 3 | 2 | 2 | 4 | 3 | 3 | 4 | 4 | 4 | SEE 1500 # WEIGHTS | 9 | 8 | 8 | 12 | 11 | 11 | ||
| 1 1/2″ | 4 | 3 | 3 | 7 | 6 | 6 | 8 | 7 | 8 | SEE 1500 # WEIGHTS | 13 | 12 | 13 | 25 | 22 | 23 | ||
| 2″ | 6 | 5 | 5 | 9 | 7 | 8 | 12 | 9 | 10 | SEE 1500 # WEIGHTS | 25 | 25 | 25 | 42 | 37 | 39 | ||
| 2 1/2″ | 8 | 7 | 7 | 12 | 10 | 12 | 18 | 13 | 15 | SEE 1500 # WEIGHTS | 36 | 36 | 35 | 52 | 55 | 56 | ||
| 3″ | 10 | 8 | 9 | 15 | 13 | 16 | 23 | 16 | 20 | 31 | 26 | 29 | 48 | 48 | 48 | 94 | 83 | 86 |
| 4″ | 15 | 13 | 17 | 25 | 22 | 27 | 42 | 37 | 41 | 53 | 53 | 54 | 73 | 73 | 73 | 145 | 125 | 130 |
| 5″ | 19 | 15 | 20 | 32 | 28 | 35 | 68 | 63 | 68 | 86 | 83 | 87 | 130 | 130 | 140 | 245 | 210 | 225 |
| 6″ | 24 | 19 | 26 | 42 | 39 | 50 | 81 | 80 | 86 | 110 | 110 | 115 | 165 | 165 | 160 | 380 | 325 | 345 |
| 8″ | 39 | 30 | 45 | 67 | 58 | 81 | 120 | 115 | 140 | 175 | 170 | 200 | 275 | 260 | 300 | 580 | 485 | 530 |
| 10″ | 52 | 43 | 70 | 91 | 81 | 124 | 190 | 170 | 230 | 260 | 245 | 290 | 455 | 435 | 510 | 1075 | 930 | 1025 |
| 12″ | 80 | 64 | 110 | 140 | 115 | 185 | 225 | 200 | 295 | 325 | 325 | 415 | 690 | 580 | 690 | 1525 | 1100 | 1300 |
| 14″ | 110 | 90 | 140 | 180 | 165 | 250 | 280 | 230 | 355 | 400 | 400 | 520 | 940 | NA | 975 | NA | NA | NA |
| 16″ | 140 | 98 | 180 | 250 | 190 | 295 | 390 | 330 | 495 | 495 | 425 | 600 | 1250 | NA | 1300 | NA | NA | NA |
| 18″ | 150 | 130 | 220 | 320 | 250 | 395 | 475 | 400 | 630 | 680 | 600 | 850 | 1625 | NA | 1750 | NA | NA | NA |
| 20″ | 180 | 165 | 285 | 400 | 315 | 505 | 590 | 510 | 810 | 830 | 730 | 1075 | 2050 | NA | 2225 | NA | NA | NA |
| 22″ | 225 | 185 | 355 | 465 | 370 | 640 | 720 | 590 | 1000 | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| 24″ | 260 | 220 | 430 | 580 | 475 | 790 | 830 | 730 | 1250 | 1500 | 1400 | 2025 | 3325 | NA | 3625 | NA | NA | NA |
Yes, we offer custom sizes for Screwed Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
