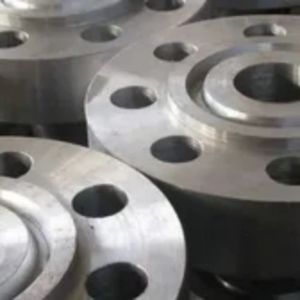

Harsh Flanges, based in Mumbai, India, is a reliable manufacturer and supplier of S235JRG2 Flanges, providing top-notch carbon steel flanges for both structural and industrial uses. Crafted to comply with European and global standards, our S235JRG2 flanges are celebrated for their outstanding weldability, toughness, and dependability in moderate load-bearing situations. Perfect for general fabrication, construction, and low-pressure pipeline systems, these flanges are meticulously designed and thoroughly tested to ensure precise dimensions and mechanical performance. With a robust supply chain and a commitment to customer satisfaction, Harsh Flanges offers cost-effective and trustworthy flange solutions across various industrial sectors.
S235JRG2 is a non-alloy structural steel classified under EN 10025. It generally contains up to 0.17% Carbon, 1.40% Manganese, along with trace amounts of Silicon, Phosphorus, and Sulfur. This steel delivers solid mechanical strength, featuring a yield strength of 235 MPa and a tensile strength that ranges from 360 to 510 MPa. It boasts excellent weldability and machinability, with an elongation of about 26%. These characteristics make S235JRG2 flanges perfect for applications that demand durability, ease of fabrication, and reliable performance under standard pressure and temperature conditions in both structural and industrial environments.

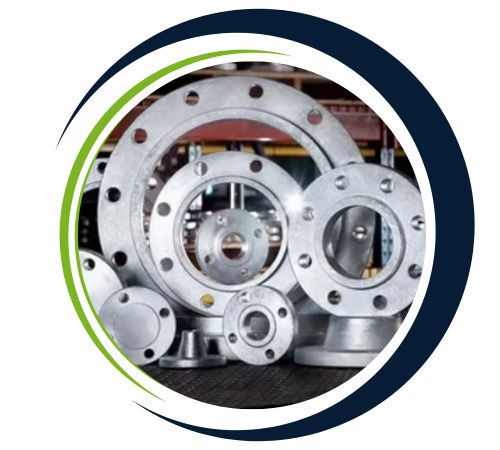

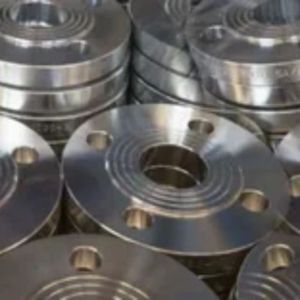

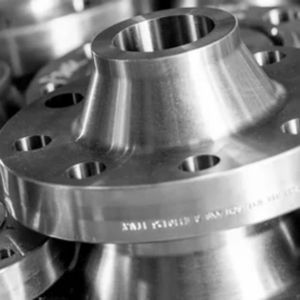

Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of S235jrg2 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent |
| Most common types | Forged / Threaded / Screwed / Plate |
| C | Si | Mn | Ni | P | S | Cr | Mo | Al | – |
| max 0.2 | max 0.55 | max 1.4 | max 0.3 | max 0.045 | max 0.045 | max 0.3 | max 0.08 | min 0.02 | Cr+Mo+Ni < 0.48 |
| Minimum yield strength Reh MPa | Tensile strength Rm MPa | Minimum elongation – A Lo = 5,65 * √So (%) | Notch impact test | |||||||||||
| Steel grade | Nominal thickness mm | Nominal thickness mm | Nominal thickness mm | Temperature | Min. absorbed energy | |||||||||
| ≤16 | >16 ≤40 | >40 ≤63 | >63 ≤80 | >80 ≤100 | >100 ≤125 | >3 ≤100 | >100 ≤125 | >3 ≤40 | >40 ≤63 | >63 ≤100 | >100 ≤125 | °C | J | |
| S235JR | 235 | 225 | 215 | 195 | 360-510 | 350-500 | 26 | 25 | 24 | 22 | +20 | 27 | ||
S235JRG2 Flanges find their place in structural engineering, construction, and low-pressure industrial piping systems. They are primarily used in building frameworks, bridges, support structures, and machinery components. In piping applications, they connect sections in water distribution systems, HVAC lines, and general industrial pipelines. These flanges are particularly suited for environments where high corrosion resistance isn’t a top priority, but good mechanical strength and ease of welding are crucial. Thanks to their affordability, reliability, and adherence to EN standards, S235JRG2 flanges are a popular choice for cost-effective solutions in various projects.
Yes, we offer custom sizes for S235jrg2 Flange to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
