Harsh Flanges is a reputable manufacturer and supplier of Monel 400 flanges located in Mumbai, India. With expertise in precision-engineered flanges, the company supplies to industries like chemical processing, petrochemical, aerospace, and power generation. With compliance to global standards and adoption of sophisticated manufacturing methods, Harsh Flanges provides superior Monel 400 flanges that provide durability and reliability in applications. Their excellence-oriented approach makes them a popular pick for industries that demand strong and corrosion-proof flange solutions.
Monel 400 flanges consist mainly of nickel (63% min) and copper (28–34%), with minor contents of iron (≤2.5%), manganese (≤2%), silicon (≤0.5%), carbon (≤0.3%), and sulfur (≤0.024%). This composition provides a good corrosion resistance, especially in marine and acidic environments. Mechanical properties consist of a tensile strength of about 485 MPa, yield strength of around 170 MPa, and elongation of 35%, yielding a combination of strength and ductility that is ideal for different industrial applications. These properties guarantee durability and resistance to deformation under stress.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 400 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |

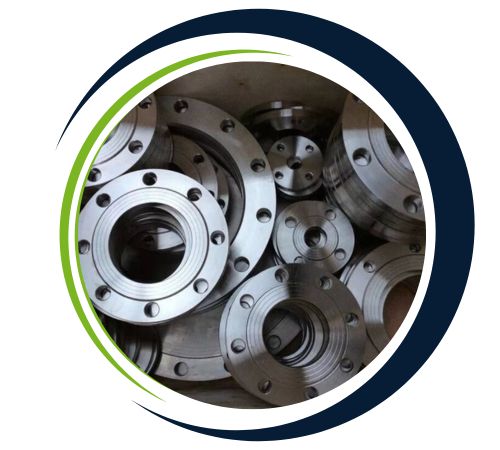

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |

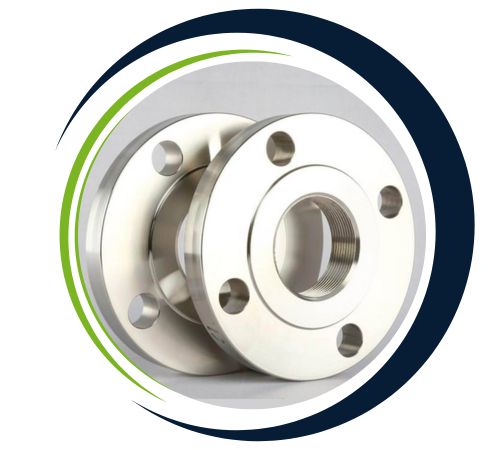

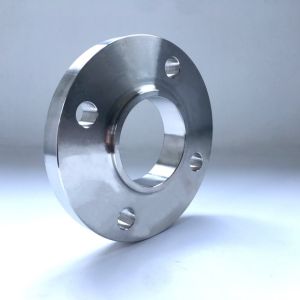

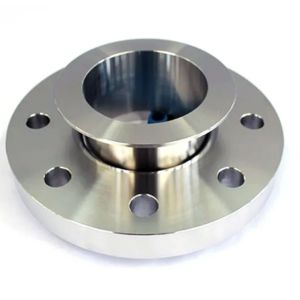

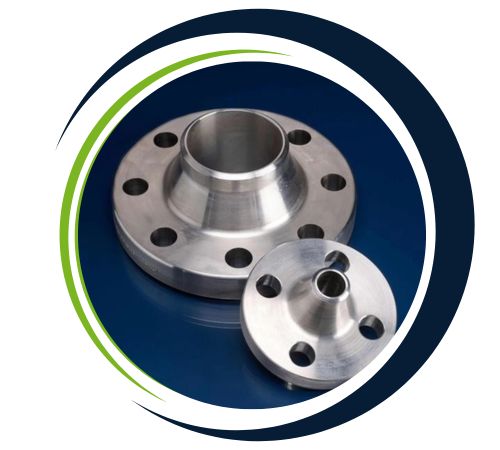

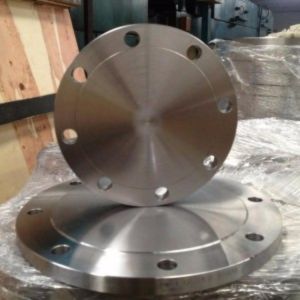

Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of Monel 400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel 400 flanges have extensive applications in industries that need high corrosion resistance and strength. In petrochemicals and chemicals, they are used in heat exchangers, pipes, and tanks to deal with hostile chemicals. Their applications in marine environments are used for equipment coming into contact with seawater, i.e., pumps and valves. Power generation plants use them in condensers and steam lines. They are also used in food and medicine industries, where their ability to withstand harsh conditions and be durable is essential.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Yes, we offer custom sizes for Monel 400 Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
