Typically, JIS B2220 20K Flanges are made from carbon steel grades such as SS400 or similar, featuring a carbon content of about 0.17–0.21%, manganese levels of 0.30–0.70%, along with trace amounts of sulfur and phosphorus. These flanges boast a tensile strength between 400 to 510 MPa and a yield strength of around 245 MPa. They are known for their good toughness, weldability, and moderate resistance to corrosion. The 20K rating signifies their suitability for medium-pressure systems up to 20 kg/cm², making them robust enough for pipelines that operate under moderate mechanical stress and temperature conditions.

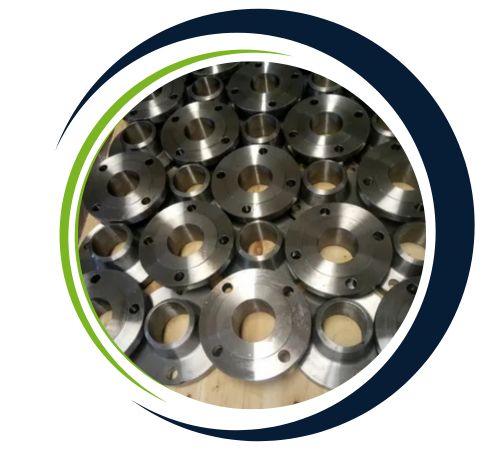

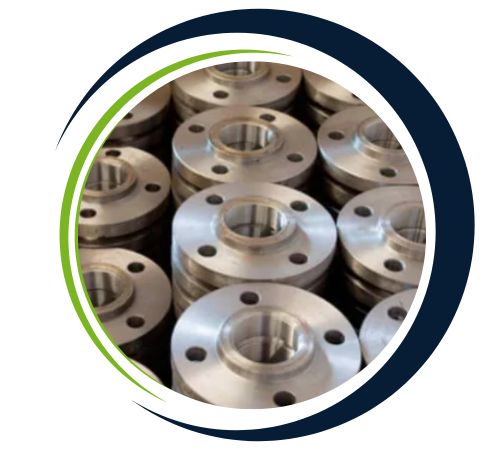

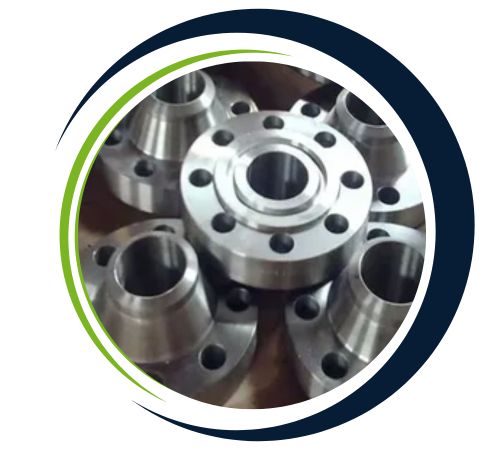

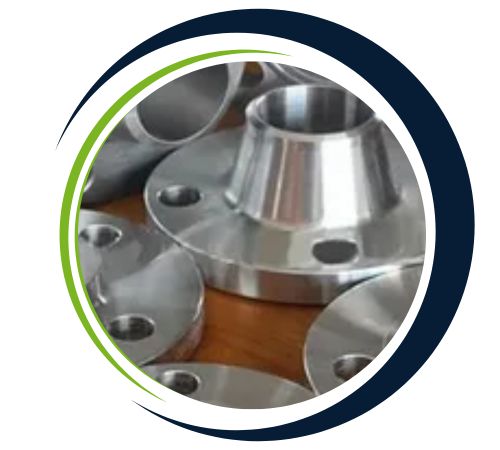

Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of JIS B2220 20k Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size | (1/2″) To (48″) |
|---|---|
| Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| JIS b2220 Standard | JIS b2220 Class | Diameter Of JIS | Bolt Circle Diameter | No. of Bolts | Size Of Bolt | Bolt Hole Diameter |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
Typically, JIS B2220 20K Flanges are made from carbon steel grades such as SS400 or similar, featuring a carbon content of about 0.17–0.21%, manganese levels of 0.30–0.70%, along with trace amounts of sulfur and phosphorus. These flanges boast a tensile strength between 400 to 510 MPa and a yield strength of around 245 MPa. They are known for their good toughness, weldability, and moderate resistance to corrosion. The 20K rating signifies their suitability for medium-pressure systems up to 20 kg/cm², making them robust enough for pipelines that operate under moderate mechanical stress and temperature conditions.
Yes, we offer custom sizes for JIS B2220 20k Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
