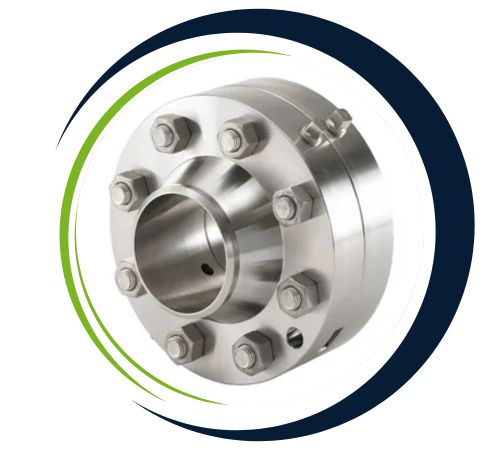

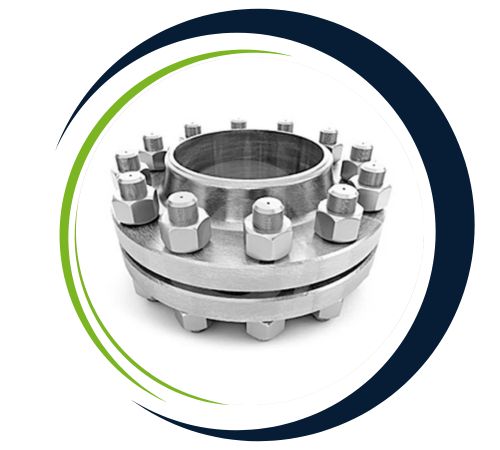

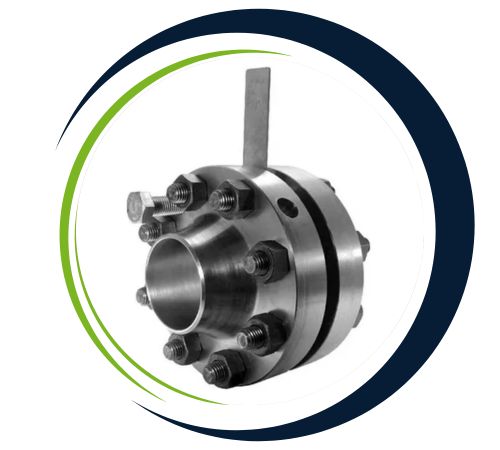

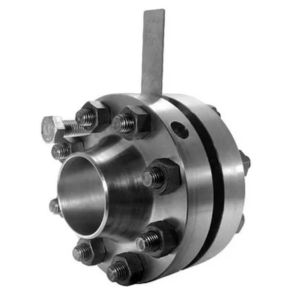

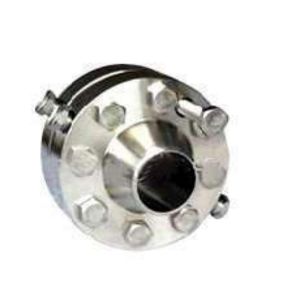

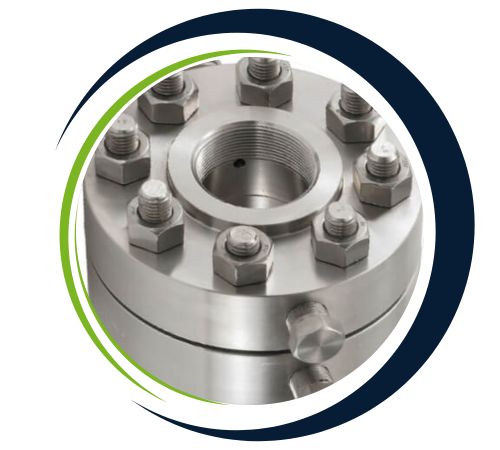

Harsh Flanges, located in Mumbai, India, has made a name for itself as a leading manufacturer and supplier of Incoloy Orifice Flanges, which are essential for accurate flow measurement and control in piping systems. Made from top-notch Incoloy alloys like Incoloy 800 and 825, these flanges are built to withstand high temperatures, oxidation, and corrosion. They adhere to strict standards such as ASME and ASTM, ensuring reliable sealing and precise metering in critical industrial settings. At Harsh Flanges, we are dedicated to providing durable, precision-engineered orifice flanges tailored for the chemical, power generation, and petrochemical industries.

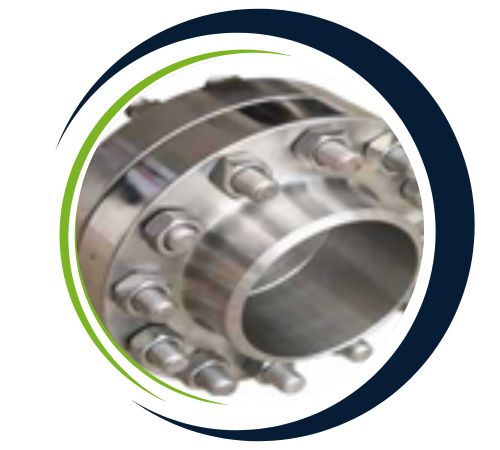

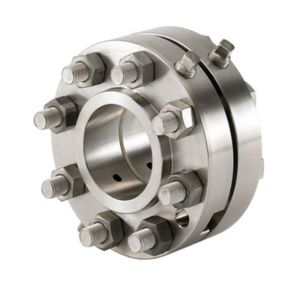

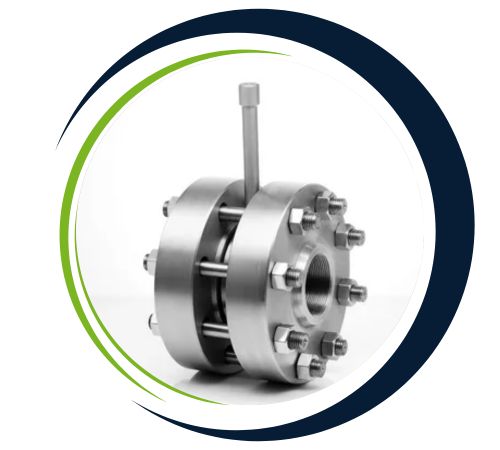

Incoloy Orifice Flanges are made from nickel-iron-chromium alloys, mainly Incoloy 800 or 825. Their typical composition features 30–46% Nickel, 19–23% Chromium, along with Iron, Molybdenum, and Carbon to boost strength and corrosion resistance. These flanges exhibit tensile strengths between 520–690 MPa and yield strengths from 205–350 MPa. Their exceptional resistance to oxidation, sulfidation, and stress-corrosion cracking at high temperatures guarantees longevity and performance in tough environments. The mechanical strength and corrosion resistance of Incoloy alloys make these flanges perfect for precise flow measurement tasks.
Harsh Flanges, a premier supplier in Mumbai, India, specializes in high-quality Incoloy Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
| ASME/ANSI B 16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Slip on Flange, Threaded Flange, Welding Neck Flange, |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | 150, 300, 400, 825, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4959 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Incoloy Orifice Flanges find extensive use in industries that demand accurate flow measurement and control, especially under high temperatures and corrosive conditions. They are commonly used in chemical processing, power plants, petrochemical refineries, and marine systems. These flanges support orifice plates that gauge fluid flow rates in pipelines transporting steam, gases, and corrosive liquids. Their outstanding resistance to oxidation and high-temperature corrosion ensures they last in aggressive environments. Incoloy orifice flanges significantly enhance the safety and efficiency of flow measurement processes.
Yes, we offer custom sizes for Incoloy Orifice Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
