Harsh Flanges, located in Mumbai, India, stands out as a leading manufacturer and supplier of Incoloy 800/800H/800HT Flanges, providing top-notch solutions for tough industrial settings. Known for their precision engineering and commitment to international standards, Harsh Flanges delivers flanges that perform exceptionally well in high-temperature and corrosive environments. These flanges are a go-to choice in the thermal processing and chemical industries, thanks to their remarkable stability and strength. With cutting-edge manufacturing capabilities, rigorous quality control, and a focus on customer satisfaction, Harsh Flanges guarantees timely deliveries, competitive pricing, and reliable service, making them a trusted partner for essential industrial piping components both in India and abroad.
Incoloy 800/800H/800HT Flanges are made up of nickel (30–35%), iron (at least 39.5%), and chromium (19–23%), with added aluminum and titanium to boost strength and oxidation resistance. The variations in carbon and aluminum/titanium content among these alloys enhance their creep and stress rupture properties. On the mechanical side, they offer a tensile strength of 500–600 MPa, yield strength of 200–275 MPa, and an elongation of about 30–45%. These flanges are perfect for high-temperature applications, providing excellent resistance to oxidation, carburization, and chloride stress-corrosion cracking, making them reliable in harsh operational conditions.
Specifications : ASTM B564 / ASME SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

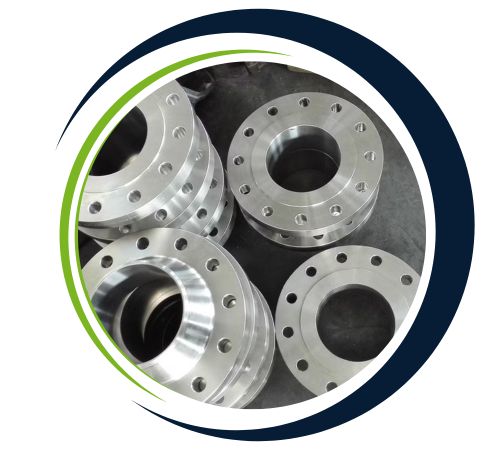

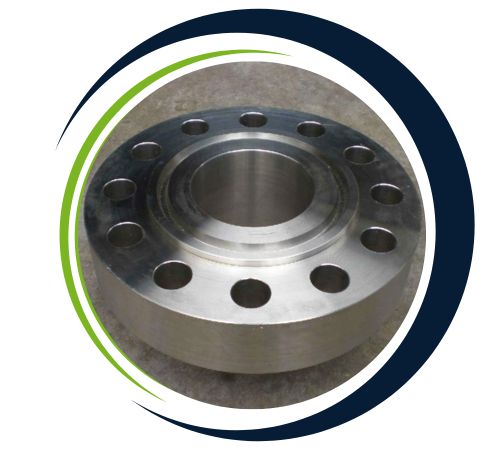

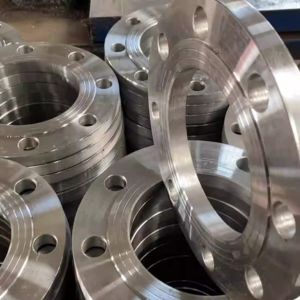

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

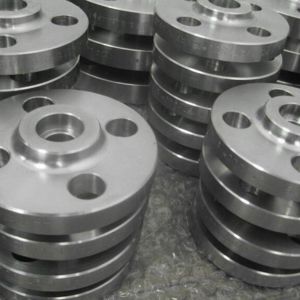

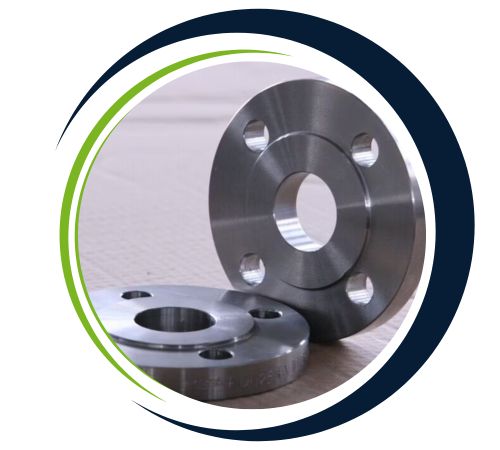

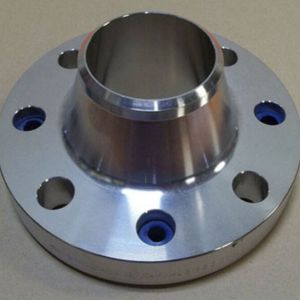

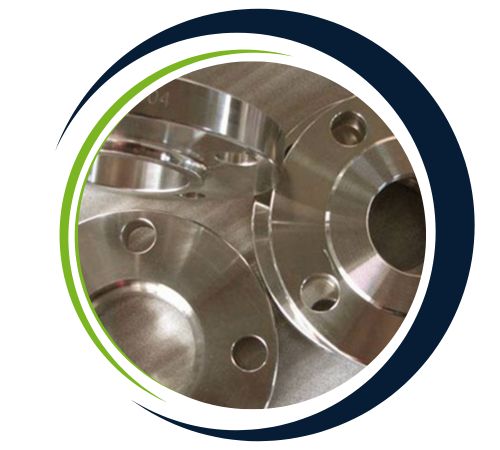

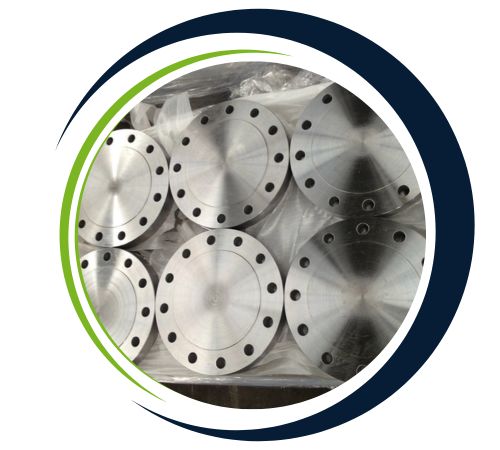

Type : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Flat flange, Industrial flanges, Plate flange, ASME B16.5 flanges.
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of Incoloy 800/800H/800HT Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 800/800H/800HT Flanges are ideal for situations that demand outstanding heat and corrosion resistance, particularly in environments that exceed 600°C. They find extensive use in heat exchangers, pressure vessels, furnace components, petrochemical processing, nuclear power generation, and industrial heating systems. Their ability to maintain stability under prolonged high temperatures, along with their excellent mechanical properties, makes them perfect for managing aggressive media in chemical plants and thermal operations. These flanges promise a long service life, structural integrity, and resistance to stress-related failures, ensuring consistent and dependable performance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Yes, we offer custom sizes for Incoloy 800/800H/800HT Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
