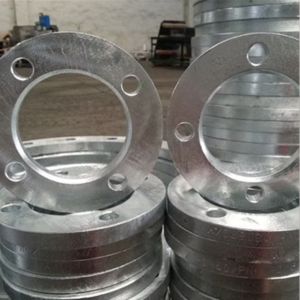

Harsh Flanges, located in Mumbai, India, stands out as a top manufacturer and supplier of Hot Dipped Galvanized Flanges, celebrated for their exceptional corrosion resistance and durability. These flanges go through a hot-dip galvanizing process, where a protective zinc layer is applied to carbon steel, offering enhanced defense against rust and environmental wear. Perfect for outdoor and challenging conditions, our hot dipped galvanized flanges meet international standards like ASTM and ISO. Harsh Flanges provides a diverse selection of sizes and pressure ratings, catering to industries such as water treatment, construction, oil & gas, and marine with reliable flange solutions.
Hot Dipped Galvanized Flanges are generally made from carbon steel grades like ASTM A105 or A350 LF2, delivering solid mechanical strength with tensile values ranging from 400-550 MPa and yield strength around 250-350 MPa. Once fabricated, the flanges are dipped in molten zinc, creating a metallurgical bond that greatly enhances corrosion resistance. The zinc coating offers sacrificial protection, preventing rust even if the surface gets scratched. The underlying carbon steel retains its mechanical durability, weldability, and pressure resistance, making these flanges suitable for a variety of industrial environments.
| Specification | Galvanized Flanges |
|---|---|
| Order Quantity | 30 Piece |
| Size | >30 inch |
| Forging Methods | Casting/ Forging/ Rolling/ Cutting |
| Production Technique | Forged/ Heat treated and machined |
| Brand | Vishal Steel |
| Flange Type | Slip On/ Blind/ Weld Neck/ Threaded |
| Color | galvanised |
| Shape | round |
| Flange Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Finish | coated |
| Rated Pressure | as per requirement |
| Surface Finish | as per requirement |
| Diameter | depends on size |
| Supporting Material | Gasket/ Ring Joint/ Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Application | Bitumen upgraders Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Composition | Content |
|---|---|
| Sulfur, S | ≤ 0.050 % |
| Iron, Fe | 98.81 – 99.26 % (as remainder) |
| Carbon, C | 0.14 – 0.20 % |
| Manganese, Mn | 0.60 – 0.90 % |
| Phosphorous, P | ≤ 0.040 % |

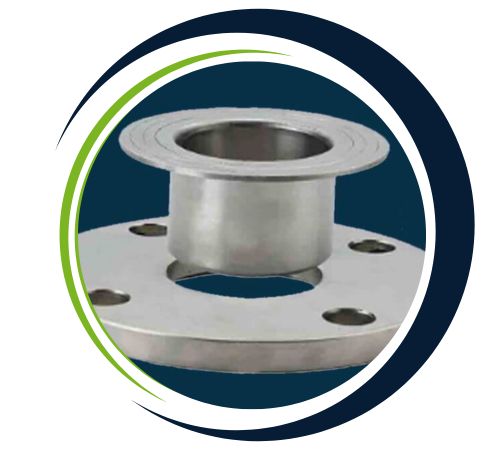

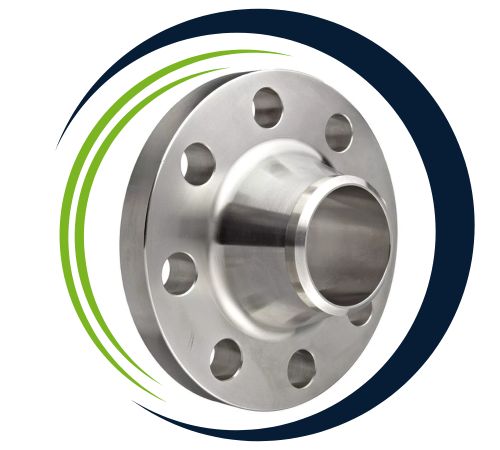

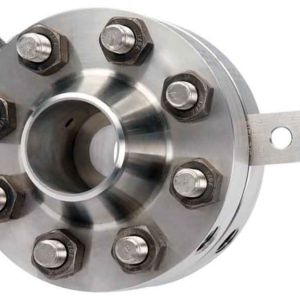

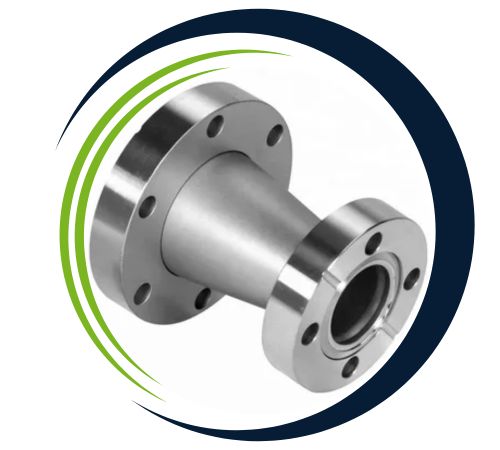

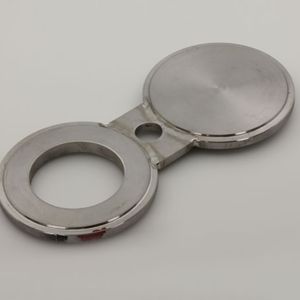

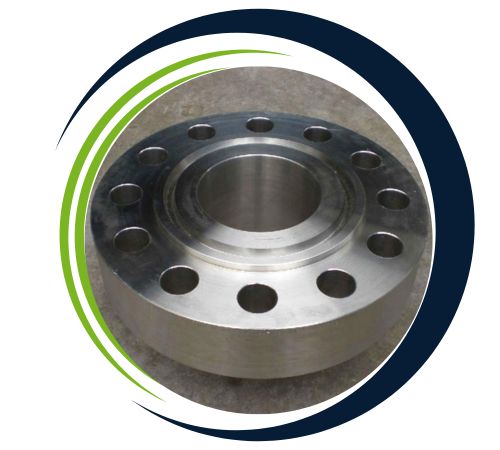

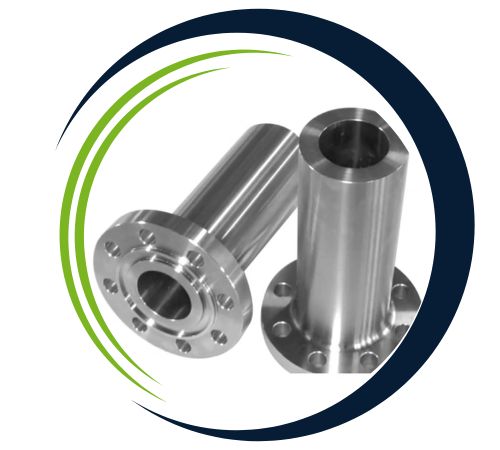

Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of Hot dipped Galvanized Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hot Dipped Galvanized Flanges find extensive use in piping systems that face moisture, outdoor elements, and corrosive conditions. They are commonly found in water supply networks, sewage treatment facilities, HVAC systems, marine and offshore pipelines, and various construction projects. Thanks to their corrosion-resistant zinc coating, these flanges boast a longer service life, which helps cut down on maintenance costs and avoids early failures. They are perfect for industries that need rust-proof connections in moderate pressure systems. Additionally, the hot-dip galvanizing process boosts durability in chemical plants and agricultural settings.
| Normal Size Of Steel Pipe in Inch | NPS (Normal Pipe Size) Size in Millimeter | O.D. | Wall Thickness | Hub Outer Diameter | Weld Neck Outer Diameter | ASME B16.5 WNRF Length | WNRF Bore Daimeter | Raised Face Diameter | Height Of Raised Face | PCD | Face Of WNRF |
| (A) | (B) | (C) | (D) | (E) | (F) | (G) | (H) | (I) | (J) | ||
| 1/2 | 15 | 90 | 9.6 | 30 | 21.3 | 46 | – | 34.9 | 2 | 60.3 | 1.6 |
| 3/4 | 20 | 100 | 11.2 | 38 | 26.7 | 51 | 42.9 | 2 | 69.9 | 1.6 | |
| 1 | 25 | 110 | 12.7 | 49 | 33.4 | 54 | 50.8 | 2 | 79.4 | 1.6 | |
| 1 1/4 | 32 | 115 | 14.3 | 59 | 42.2 | 56 | 63.5 | 2 | 88.9 | 1.6 | |
| 1 1/2 | 40 | 125 | 15.9 | 65 | 48.3 | 60 | 73 | 2 | 98.4 | 1.6 | |
| 2 | 50 | 150 | 17.5 | 78 | 60.3 | 62 | 92.1 | 2 | 120.7 | 1.6 | |
| 2 1/2 | 65 | 180 | 20.7 | 90 | 73 | 68 | 104.8 | 2 | 139.7 | 1.6 | |
| 3 | 80 | 190 | 22.3 | 108 | 88.9 | 68 | 127 | 2 | 152.4 | 1.6 | |
| 3 1/2 | 90 | 215 | 22.3 | 122 | 101.6 | 70 | 139.7 | 2 | 177.8 | 1.6 | |
| 4 | 100 | 230 | 22.3 | 135 | 114.3 | 75 | 157.2 | 2 | 190.5 | 1.6 | |
| 5 | 125 | 255 | 22.3 | 164 | 141.3 | 87 | 185.7 | 2 | 215.9 | 1.6 | |
| 6 | 150 | 280 | 23.9 | 192 | 168.3 | 87 | 215.9 | 2 | 241.3 | 1.6 | |
| 8 | 200 | 345 | 27 | 246 | 219.1 | 100 | 269.9 | 2 | 298.5 | 1.6 | |
| 10 | 250 | 405 | 28.6 | 305 | 273 | 100 | 323.8 | 2 | 362 | 1.6 | |
| 12 | 300 | 485 | 30.2 | 365 | 323.8 | 113 | 381 | 2 | 431.8 | 1.6 | |
| 14 | 350 | 535 | 33.4 | 400 | 355.6 | 125 | 412.8 | 2 | 476.3 | 1.6 | |
| 16 | 400 | 595 | 35 | 457 | 406.4 | 125 | 469.9 | 2 | 539.8 | 1.6 | |
| 18 | 450 | 635 | 38.1 | 505 | 457.2 | 138 | 533.4 | 2 | 577.9 | 1.6 | |
| 20 | 500 | 700 | 41.3 | 559 | 508 | 143 | 584.2 | 2 | 635 | 1.6 | |
| 24 | 600 | 815 | 46.1 | 663 | 610 | 151 | 692.2 | 2 | 749.3 | 1.6 |
| Size | Specification |
|---|---|
| 3/4″ Pipe | 3-1/4″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 1/2″ Pipe | 3″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 2″ Pipe | 5-1/2″ OD, 1″ Hub Length, Black Floor Pipe Flange |
| 1-1/2″ Pipe | 4-1/2″ OD, 7/8″ Hub Length, Black Floor Pipe Flange |
| 1″ Pipe | 4″ OD, 11/16″ Hub Length, Black Floor Pipe Flange |
| 1/2″ Pipe | 3-1/2″ OD, 5/8″ Hub Length, Galvanized Floor Pipe Flange |
| 1-1/4″ Pipe | 4″ OD, 13/16″ Hub Length, Black Floor Pipe Flange |
| 3/4″ Pipe | 3-1/2″ OD, 5/8″ Hub Length, Galvanized Floor Pipe Flange |
| 1/4″ Pipe | 2-3/16″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 3/8″ Pipe | 3″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 2″ Pipe | 5-1/2″ OD, 1″ Hub Length, Galvanized Floor Pipe Flange |
| 1″ Pipe | 4″ OD, 11/16″ Hub Length, Galvanized Floor Pipe Flange |
| Normal Pipe Size | Dimensions | Weight (Kilogram) | ||||
|---|---|---|---|---|---|---|
| Normal Pipe Size (Inch) | DN (mm) | Flanges In Millimeter | Flanges In Wall Thickness | Slip On | Weld Neck | Blind |
| 1/2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for Hot dipped Galvanized Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
