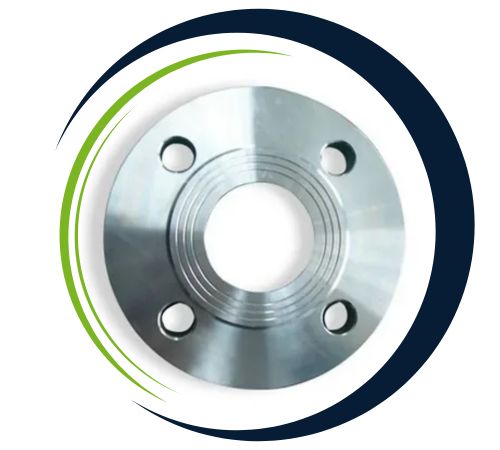

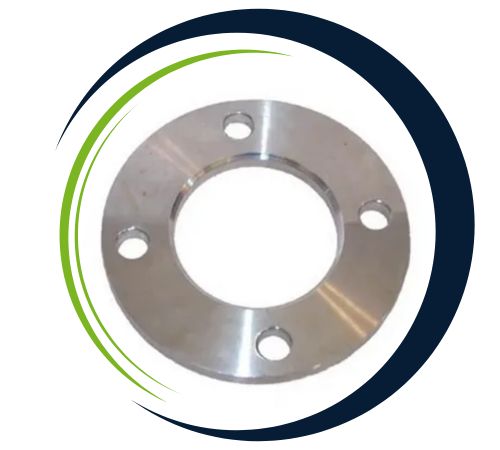

Harsh Flanges, based in Mumbai, India, has earned a solid reputation as a reliable manufacturer and supplier of Hastelloy Plate Flanges, celebrated for their remarkable corrosion resistance and mechanical strength. Hastelloy, a high-performance nickel-based alloy, is designed to withstand both oxidizing and reducing environments, making these flanges perfect for tough chemical applications. Our plate flanges are meticulously crafted from top-quality Hastelloy grades to comply with ASTM and ASME standards, guaranteeing durability and reliability. Harsh Flanges serves various industries, including chemical processing, aerospace, nuclear, and power generation, offering robust flange solutions tailored for demanding conditions.
Hastelloy Plate Flanges are mainly made of nickel, enriched with notable amounts of molybdenum, chromium, and iron, which provide exceptional corrosion resistance against acids, seawater, and high-temperature oxidation. Popular grades like Hastelloy C-276 and C-22 deliver tensile strengths ranging from about 550 to 750 MPa, along with commendable yield strength. These flanges showcase impressive toughness, ductility, and resistance to pitting, crevice corrosion, and stress corrosion cracking. Their mechanical properties ensure they maintain structural integrity and performance even in extreme chemical and thermal conditions.

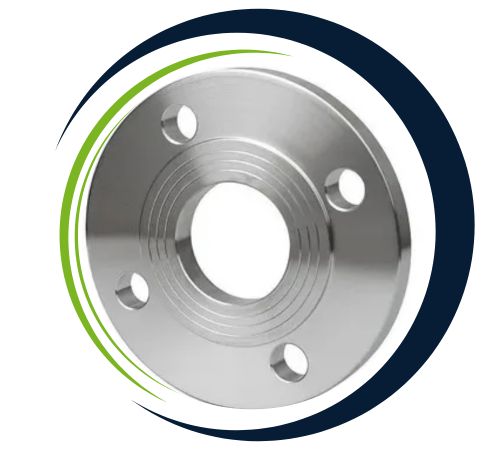

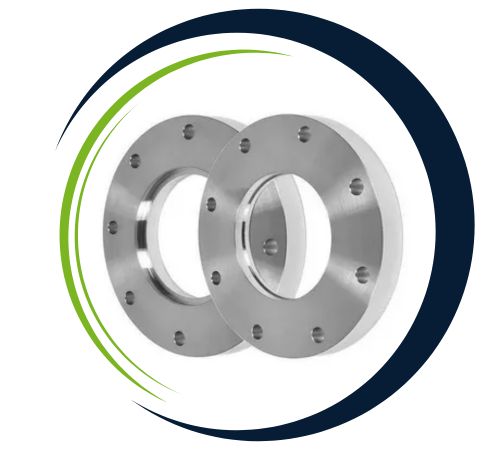

Hastelloy Plate Flanges Specification : ASTM B564 / ASME SB564
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
Harsh Flanges, a premier supplier in Mumbai, India, specializes in high-quality Hastelloy Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Hastelloy Plate Flanges find extensive use in chemical processing plants, nuclear reactors, aerospace, and marine industries where top-notch corrosion resistance is a must. They are perfect for connecting pipelines, valves, and equipment that deal with aggressive acids, oxidizers, and high-temperature fluids. Common applications include heat exchangers, reactors, pressure vessels, and offshore platforms. Thanks to their superior corrosion resistance and mechanical strength, these flanges are vital in environments with highly corrosive substances and significant temperature fluctuations, ensuring safety and longevity in critical industrial operations.
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|

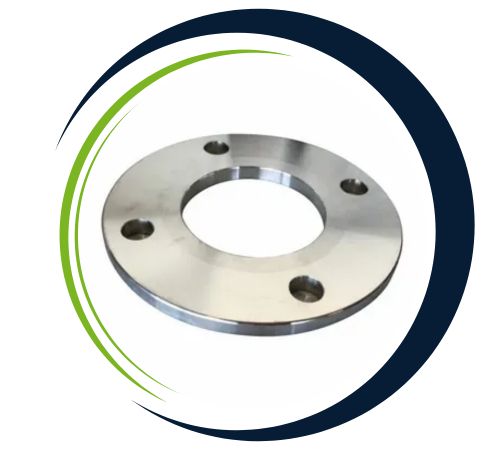

| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | NiCr21Mo14W |

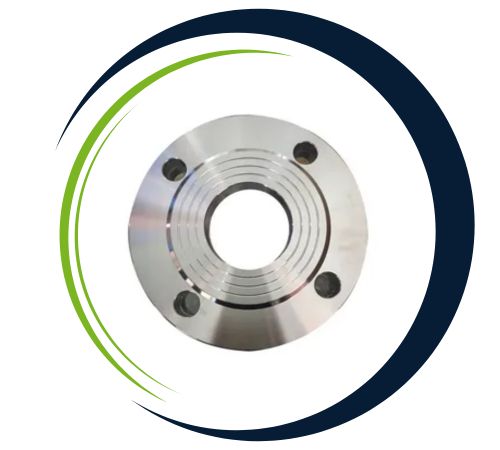

| Hastelloy C276 | N10276 | 2.4819 | NW 0276 | NiMo16Cr15W |
|
Standard |
Class |
Diameter |
Bolt Circle Diameter |
Number of Bolts |
Bolt Size |
Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
|
AS4087 Flanges |
PN14 Flanges |
95 |
67 |
4 |
M12 |
14 |
|
AS 2129 Flange |
Table C Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table D Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table E Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table F Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table H Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
Table J Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
ANSI B16.5 Flanges |
ANSI 150 Flanges |
89 |
60 |
4 |
13 |
16 |
|
ANSI 300 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 600 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 900 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ANSI 1500 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ISO 7005 (DIN) Flange |
PN6 Flanges |
80 |
55 |
4 |
M10 |
11 |
|
PN10 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN16 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN20 Flanges |
90 |
60.5 |
4 |
M14 |
16 |
|
|
PN25 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN40 Flanges |
95 |
65 |
4 |
M12 |
14 |
Yes, we offer custom sizes for Hastelloy Plate Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
