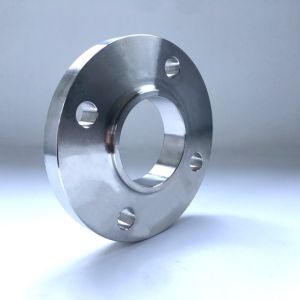

Harsh Flanges, based in Mumbai, India, is a reliable manufacturer and supplier of top-quality Hastelloy C276 Flanges, designed to excel in highly corrosive and demanding environments. Crafted from a nickel-molybdenum-chromium alloy with added iron and tungsten, Hastelloy C276 boasts remarkable resistance to a variety of corrosive substances. Our flanges meet international standards like ASTM B564 and ASME, ensuring precision and mechanical integrity. Harsh Flanges caters to essential industries such as chemical processing, marine, waste treatment, and pharmaceuticals, delivering durable and leak-proof flange solutions for even the toughest industrial challenges.
Hastelloy C276 Flanges consist of about 57% Nickel, 15.5% Molybdenum, 16% Chromium, 5% Iron, and 3.8% Tungsten, along with trace amounts of cobalt and other elements. This unique blend provides exceptional resistance to strong oxidizers, chlorides, acidic environments, and reducing conditions. Their mechanical properties include a tensile strength of roughly 690 MPa, yield strength of around 283 MPa, and an elongation of about 40–50%. These flanges are non-magnetic, boast excellent weldability, and maintain their strength and corrosion resistance even under high thermal and chemical stress.
| C276 Forged Fittings Specifications | ASTM B564/ ASME SB564 |
|---|---|
| C276 Alloy Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Hastelloy C276 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Hastelloy C276 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B564 C276 Hastelloy Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Hastelloy C276 Forged Fittings Thread | NPT, BSPT, BSPP |
| C276 Hastelloy Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy C276 Forged Fittings Origin & Mills | India |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

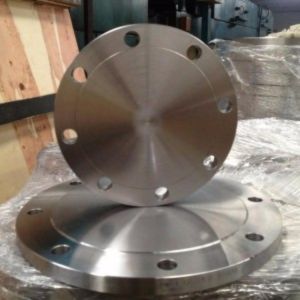

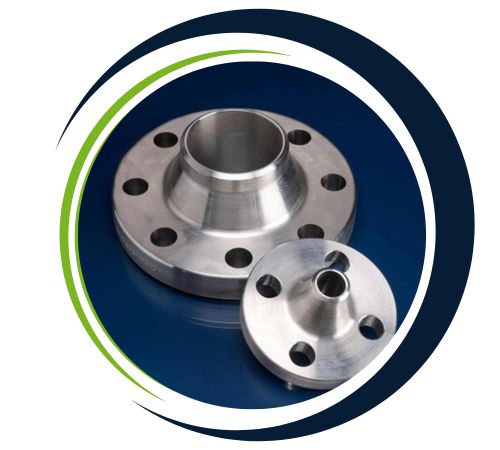

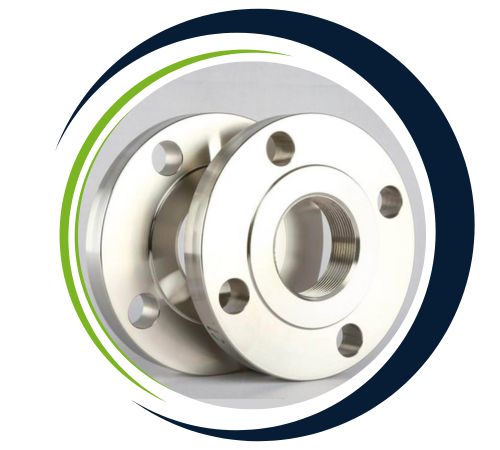

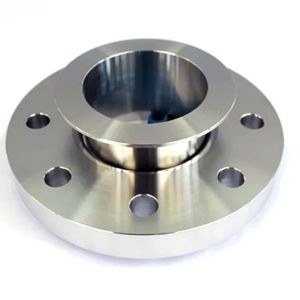

Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of Hastelloy C276 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hastelloy C276 Flanges are commonly utilized in harsh environments where resistance to severe corrosion is essential. Typical applications include chemical reactors, heat exchangers, scrubbers, flue gas desulfurization systems, marine exhaust systems, and pulp and paper processing. These flanges are perfect for managing aggressive chemicals like hydrochloric acid, sulfuric acid, chlorine gas, and wet chlorides. Their outstanding resistance to localized corrosion, such as pitting and crevice attack, makes them vital in systems susceptible to fluid stagnation. Industries depend on Hastelloy C276 flanges for their long service life, safety, and minimized maintenance needs.
| ASTM B564 / B564M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Hastelloy Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Hastelloy fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Yes, we offer custom sizes for Hastelloy C276 Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | OR | GOST |
| Hastelloy C276 | N10276 | 2.4819 | – | NiMo16Cr15W | NW 0276 | ЭП760 | ХН65МВУ |
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C276 | 0.01 | 15.0 – 17.0 | 1.0 | 0.08 | 4.00 – 7.00 | 0.04 | 0.03 | 2.5 | 14.5 – 16.5 | 3 – 4.5 | 0.35 | Bal |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40 % |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
