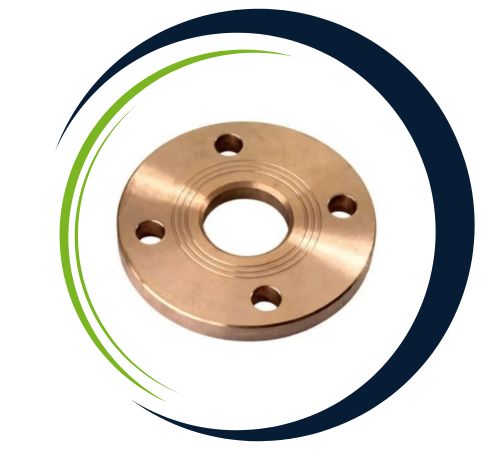

Type 01 EN 1092-1 Stainless steel (304, 316), alloy steel, and carbon steel are common materials used in the production of flanges. Depending on the material grade, their chemical makeup includes elements like iron, carbon, chromium, nickel, and molybdenum, which enhance their mechanical strength and resistance to corrosion. Tensile strength between 360 and 600 MPa, yield strength between 150 and 300 MPa, and good ductility with elongation greater than 20% are examples of mechanical properties. These flanges are made to work dependably in systems with low to moderate pressure, guaranteeing a safe and leak-proof connection in pipeline assemblies.
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of EN 1092-1 Type 01 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size | (1/2″) To (48″) |
|---|---|
| Pressure | PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160 |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| Rated Diameter | Pipe | Flange | Screws | Weight (7,85 Kg/dm3) | |||||
|---|---|---|---|---|---|---|---|---|---|
| d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
| 15 | 21,3 | 22,0 | 55 | 80 | 12 | 11 | M10 | 4 | 0,401 |
| 20 | 26,9 | 27,5 | 65 | 90 | 14 | 11 | M10 | 4 | 0,590 |
| 25 | 33,7 | 34,5 | 75 | 100 | 14 | 11 | M10 | 4 | 0,716 |
| 32 | 42,4 | 43,5 | 90 | 120 | 16 | 14 | M12 | 4 | 1,153 |
| 40 | 48,3 | 49,5 | 100 | 130 | 16 | 14 | M12 | 4 | 1,344 |
| 50 | 60,3 | 61,5 | 110 | 140 | 16 | 14 | M12 | 4 | 1,478 |
| 65 | 76,1 | 77,5 | 130 | 160 | 16 | 14 | M12 | 4 | 1,850 |
| 80 | 88,9 | 90,5 | 150 | 190 | 18 | 18 | M16 | 4 | 2,944 |
| 100 | 114,3 | 116,0 | 170 | 210 | 18 | 18 | M16 | 4 | 3,247 |
| 125 | 139,7 | 141,5 | 200 | 240 | 20 | 18 | M16 | 8 | 4,301 |
| 150 | 168,3 | 170,5 | 225 | 265 | 20 | 18 | M16 | 8 | 4,741 |
| 200 | 219,1 | 221,5 | 280 | 320 | 22 | 18 | M16 | 8 | 6,862 |
| 250 | 273,0 | 276,5 | 335 | 375 | 24 | 18 | M16 | 12 | 8,893 |
| 300 | 323,9 | 327,5 | 395 | 440 | 24 | 22 | M20 | 12 | 11,880 |
| 350 | 355,6 | 359,5 | 445 | 490 | 26 | 22 | M20 | 12 | 16,788 |
| 400 | 406,4 | 411,0 | 495 | 540 | 28 | 22 | M20 | 16 | 19,781 |
| 450 | 457,0 | 462,0 | 550 | 595 | 30 | 22 | M20 | 16 | 24,495 |
| 500 | 508,0 | 513,5 | 600 | 645 | 30 | 22 | M20 | 20 | 26,307 |
| 600 | 610,0 | 616,5 | 705 | 755 | 32 | 26 | M24 | 20 | 34,702 |
| Rated Diameter | Pipe | Flange | Screws | Weight (7,85 Kg/dm3) | |||||
|---|---|---|---|---|---|---|---|---|---|
| d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
| 15 | 21,3 | 22,0 | 55 | 80 | 12 | 11 | M10 | 4 | 0,401 |
| 20 | 26,9 | 27,5 | 65 | 90 | 14 | 11 | M10 | 4 | 0,590 |
| 25 | 33,7 | 34,5 | 75 | 100 | 14 | 11 | M10 | 4 | 0,716 |
| 32 | 42,4 | 43,5 | 90 | 120 | 16 | 14 | M12 | 4 | 1,153 |
| 40 | 48,3 | 49,5 | 100 | 130 | 16 | 14 | M12 | 4 | 1,344 |
| 50 | 60,3 | 61,5 | 110 | 140 | 16 | 14 | M12 | 4 | 1,478 |
| 65 | 76,1 | 77,5 | 130 | 160 | 16 | 14 | M12 | 4 | 1,850 |
| 80 | 88,9 | 90,5 | 150 | 190 | 18 | 18 | M16 | 4 | 2,944 |
| 100 | 114,3 | 116,0 | 170 | 210 | 18 | 18 | M16 | 4 | 3,247 |
| 125 | 139,7 | 141,5 | 200 | 240 | 20 | 18 | M16 | 8 | 4,301 |
| 150 | 168,3 | 170,5 | 225 | 265 | 20 | 18 | M16 | 8 | 4,741 |
| 200 | 219,1 | 221,5 | 295 | 340 | 24 | 22 | M20 | 8 | 9,244 |
| 250 | 273,0 | 276,5 | 350 | 395 | 26 | 22 | M20 | 12 | 11,788 |
| 300 | 323,9 | 327,5 | 400 | 445 | 26 | 22 | M20 | 12 | 13,578 |
| 350 | 355,6 | 359,5 | 460 | 505 | 30 | 22 | M20 | 16 | 21,766 |
| 400 | 406,4 | 411,0 | 515 | 565 | 32 | 26 | M24 | 16 | 27,436 |
| 450 | 457,2 | 462,0 | 565 | 615 | 36 | 26 | M24 | 20 | 33,470 |
| 500 | 508,0 | 513,5 | 620 | 670 | 38 | 26 | M24 | 20 | 40,103 |
Type 01 EN 1092-1 Industries including water supply, wastewater treatment, oil and gas, chemical processing, food and beverage, and HVAC systems all make extensive use of flanges. They are perfect for applications with low pressure and non-critical sealing requirements because they are flat-faced flanges. These flanges are simple to align, install, and maintain, and they are frequently used in conjunction with gaskets to provide a tight seal. They work particularly well with systems that use non-metallic piping or cast iron. They are a popular option for commercial and industrial piping applications due to their adaptability, affordability, and conformity with European flange standards.
Yes, we offer custom sizes for EN 1092-1 Type 01 Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
