Located in the bustling city of Mumbai, India, Harsh Flanges has made a name for itself as a top-notch manufacturer and supplier of high-quality Duplex Steel S32205 Flanges. These flanges are made from UNS S32205, a nitrogen-enhanced duplex stainless steel that boasts impressive strength and outstanding corrosion resistance. Built to endure tough conditions, Duplex Steel S32205 Flanges are perfect for a variety of industries, including oil and gas, chemical processing, and marine engineering. At Harsh Flanges, we take pride in ensuring that every product meets international standards and aligns with our customers’ specifications, providing reliable and durable solutions for all your industrial needs.
Duplex Steel S32205 Flanges are made up of about 22% chromium, 5% nickel, 3% molybdenum, along with trace amounts of nitrogen, manganese, and silicon. This special blend creates a microstructure that balances ferrite and austenite, giving it exceptional strength and corrosion resistance. The mechanical properties are impressive too, featuring a tensile strength of 620 MPa, yield strength of 450 MPa, and an elongation of 30%. These characteristics make Duplex Steel S32205 Flanges perfect for high-pressure and high-temperature applications.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

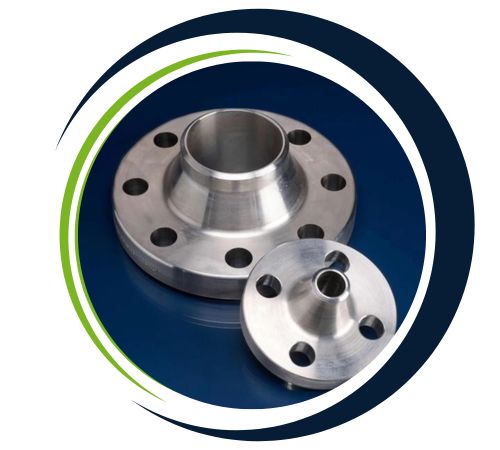

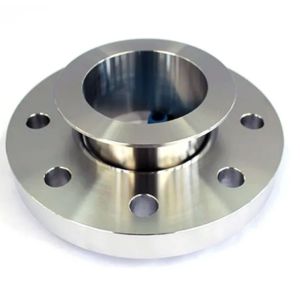

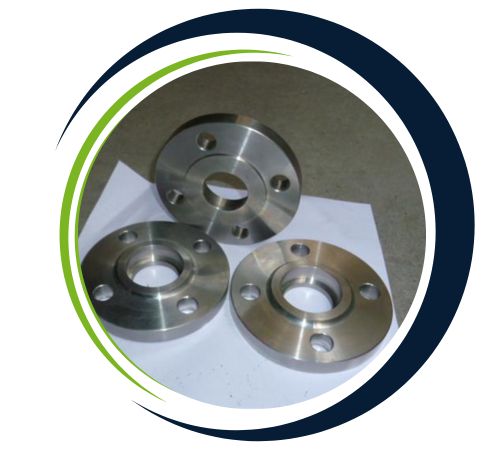

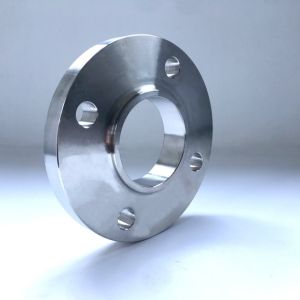

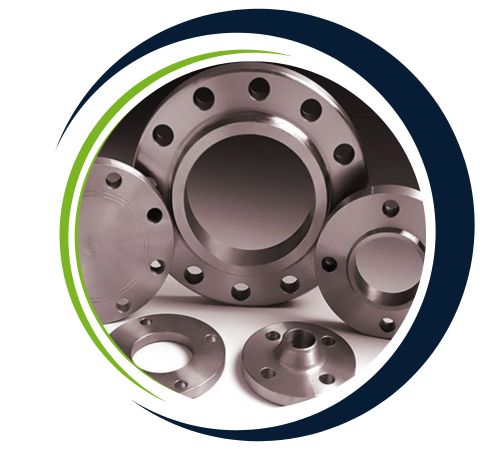

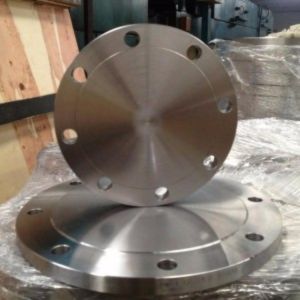

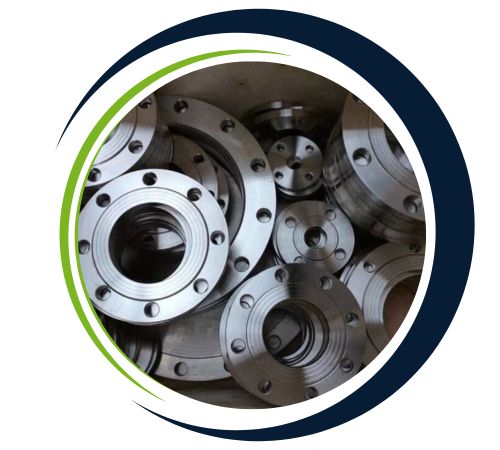

Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of Duplex Steel Flanges S32205, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Duplex Steel S32205 Flanges find their place in various industries that demand materials with remarkable strength and resistance to corrosion. You’ll see them in action in chemical processing, marine engineering, oil and gas extraction, aerospace, power generation, desalination plants, medical equipment, and food processing. These flanges are particularly suited for environments that face corrosive substances, high pressures, and elevated temperatures, ensuring the durability and reliability of piping systems and equipment.
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex Steel S32205 | s32205 | 1.4462 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex S32205 | 0.030 max | 2 max | 1 max | 0.030 max | 0.020 max | 21 – 23 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | Bal |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
Yes, we offer custom sizes for Duplex Steel Flanges S32205 to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
