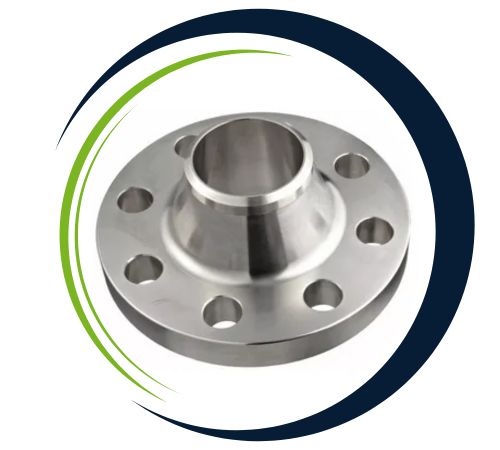

Harsh Flanges stands out as a top-notch manufacturer and supplier of premium DIN 2634 PN25 Weld Neck Flanges right here in Mumbai, India. We specialize in crafting precision-engineered flanges that cater to industries in need of sturdy and dependable piping solutions. Our DIN 2634 PN25 Weld Neck Flanges are built to endure high-pressure situations, ensuring safety and longevity in critical systems. With a strong commitment to excellence, Harsh Flanges provides products that align with international standards, making us a reliable partner for projects that demand outstanding performance and quality.
Typically forged from carbon steel grades like ASTM A105, DIN 2634 PN25 Weld Neck Flanges boast impressive strength and durability. These flanges are designed to handle pressures of up to 25 bar (PN25) and work seamlessly with various pipe materials. Their mechanical properties include high tensile strength, impact resistance, and the ability to endure thermal and mechanical stresses, making them perfect for high-pressure and high-temperature applications. The flange design promotes a smooth transition between the pipe and flange, minimizing stress concentrations and boosting the overall integrity of the piping system.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
|
Germany standard flange DIN 2634 welding neck flanges; nominal pressure 16 |
||||||||||||||||
|
Brides à souder à collerette DIN 2634: pression nominale 16 |
||||||||||||||||
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | – | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
| 21,3 | – | 32 | ||||||||||||||
| 20 | – | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
| 26,9 | – | 40 | ||||||||||||||
| 25 | – | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
| 33,7 | – | 45 | ||||||||||||||
| 32 | – | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
| 42,4 | – | 56 | ||||||||||||||
| 40 | – | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
| 48,3 | – | 64 | ||||||||||||||
| 50 | – | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
| 60,3 | – | 75 | ||||||||||||||
| 65 | 76,1 | – | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
| 80 | 88,9 | – | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
| 100 | – | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
| 114,3 | – | 131 | ||||||||||||||
| 125 | – | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
| 139,7 | – | 156 | ||||||||||||||
| 150 | – | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
| 168,3 | – | 184 | ||||||||||||||
| (175) | 193,7 | – | 315 | 24 | 270 | 60 | 210 | 5,4 | 10 | 12 | 242 | 3 | 8 | M 20 | 22 | 9,85 |
| 200 | 219,1 | – | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 12 | M 20 | 22 | 11 |
| 250 | – | 267 | 405 | 26 | 355 | 70 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 24 | 26 | 15,6 |
| 273 | – | 292 | ||||||||||||||
| 300 | 323,9 | – | 460 | 28 | 410 | 78 | 344 | 7,1 | 12 | 16 | 378 | 4 | 12 | M 24 | 26 | 22 |
| 350 | 355,6 | – | 520 | 30 | 470 | 82 | 390 | 8 | 12 | 16 | 438 | 4 | 16 | M 24 | 26 | 31,2 |
| – | 368 | 28,8 | ||||||||||||||
| 400 | 406,4 | – | 580 | 32 | 525 | 85 | 445 | 8 | 12 | 16 | 490 | 4 | 16 | M 27 | 30 | 39,3 |
| – | 419 | 36,3 | ||||||||||||||
| (450) | 457 | – | 640 | 34 | 585 | 85 | 490 | 8 | 12 | 16 | 550 | 4 | 20 | M 27 | 30 | 44,3 |
| 500 | 508 | – | 715 | 34 | 650 | 90 | 548 | 8 | 12 | 16 | 610 | 4 | 20 | M 30 | 33 | 61 |
| 600 | 610 | – | 840 | 36 | 770 | 95 | 652 | 8,8 | 12 | 18 | 725 | 5 | 20 | M 33 | 36 | 75,4 |
| 700 | 711 | – | 910 | 36 | 840 | 100 | 755 | 8,8 | 12 | 18 | 795 | 5 | 24 | M 33 | 36 | 77 |
| 800 | 813 | – | 1025 | 38 | 950 | 105 | 855 | 10 | 12 | 20 | 900 | 5 | 24 | M 36 | 39 | 101 |
| 900 | 914 | – | 1125 | 40 | 1050 | 110 | 955 | 10 | 12 | 20 | 1000 | 5 | 28 | M 36 | 39 | 122 |
| 1000 | 1016 | – | 1255 | 42 | 1170 | 120 | 1058 | 10 | 16 | 22 | 1115 | 5 | 28 | M 39 | 42 | 162 |
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of DIN 2634 PN25 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find DIN 2634 PN25 Weld Neck Flanges widely used across industries like chemical processing, power generation, oil and gas, and water treatment. Their design ensures a robust, leak-proof connection, making them ideal for high-pressure systems where safety and reliability are crucial. These flanges perform well in both hot and cold temperatures, providing consistent results across various operational conditions. Their compatibility with different pipe materials and ease of inspection make them a top choice for critical applications that require utmost reliability.
Yes, we offer custom sizes for DIN 2634 PN25 Weld Neck Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| Raised Face DIN 2634 PN25 Weld Neck Plate Flanges | Titanium DIN 2634 PN25 Welding Neck Flanges |
| DIN 2634 PN25 Weld Neck Flange Manufacturer | Flat Face DIN 2634 PN25 Weld Neck Flange Manufacturer |
| 30 inch DIN 2634 PN25 Weld Neck Flange Dealer | Raised Face DIN 2634 PN25 Weld Neck Flanges Manufacturer |
| DIN 2634 PN25 Weld Neck Pipe Flanges Wholesaler | DIN 2634 PN25 WNRF Flanges Supplier |
| DIN 2634 PN25 WNRF Flange Stockist in India | Raised Faced DIN 2634 PN25 Slip-On flanges Dealer in Mumbai |
| Alloy Steel DIN 2634 PN25 Welding Neck Flanges | Copper Nickel DIN 2634 PN25 Weld Neck Flanges at Best Price |
| DIN 2634 PN25 Welding Neck FF Flange Supplier | Suppliers of DIN 2634 PN25 Weld Neck Flange |
| DIN 2634 PN25 WNRF Flanges Distributor in Mumbai | Flat Face DIN 2634 PN25 Weld Neck Flanges Exporter |
| DIN 2634 PN25 WNRF Flanges Supplier in Mumbai | Alloy Steel DIN 2634 PN25 Weld Neck Flanges Manufacturer in India |
| Nickel Alloy DIN 2634 PN25 Welding Neck Flange | Mild Steel DIN 2634 PN25 Weld Neck Flange |
| ASME SA105N Raised Faced DIN 2634 PN25 Weld Neck Flanges | 18 inch Carbon Steel DIN 2634 PN25 Weld Neck Flange |
| 18 inch DIN 2634 PN25 Carbon Steel Weld Neck Flange | DIN 2634 PN25 Weld Neck Flange Dimensions in mm |
| DIN 2634 PN25 Welding Neck Flanges Supplier in Mumbai | MS DIN 2634 PN25 Weld Neck Flange |
| DIN 2634 PN25 Large Diameter Weld Neck Flange | 30 Inch DIN 2634 PN25 Weld Neck Pipe Flange Dimensions |
| 4 inch Stainless Steel DIN 2634 PN25 Weld Neck Flange | DIN 2634 PN25 Weld Neck RF Flanges Stockholder |
| Carbon Steel DIN 2634 PN25 Welding Neck Flange | DIN 2634 PN25 Weld Neck RF Flange Supplier |
| Carbon Steel Raised Face DIN 2634 PN25 Weld Neck Flange Stockist | Duplex Steel DIN 2634 PN25 WNRF Flanges Supplier in Mumbai |
| German Standard DIN 2634 PN25 Weld Neck Flanges | DIN 2634 PN25 Weld Neck Flange Supplier in India |
| 8 Inch DIN 2634 PN25 Welding Neck Pipe Flanges | DIN 2634 PN25 Weld Neck Flanges Stockist |
| DIN 2634 PN25 Weld Neck Pipe Flanges Supplier in Mumbai | Duplex Steel DIN 2634 PN25 Weld Neck Flanges |
| Stainless Steel DIN 2634 PN25 Weld Neck Flange | ASTM B564 Raised Faced DIN 2634 PN25 Weld Neck Flanges |
| DIN 2634 PN25 WNRF Flange Exporter | DIN 2634 PN25 Weld Neck Flange Pressure Ratings |
| DIN 2634 PN25 Weld Neck Flange Dimensions | Raised Face DIN 2634 PN25 Weld Neck Flange Manufacturer |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
