Harsh Flanges stands out as a leading manufacturer and supplier of DIN 2632 PN10 Weld Neck Flanges, proudly based in Mumbai, India. They’re dedicated to providing top-notch flange solutions that adhere to strict German and international standards. With a focus on precision engineering and long-lasting performance, Harsh Flanges crafts weld neck flanges that ensure secure connections in pipelines operating at 10 bar pressure. These flanges are perfect for low to medium-pressure systems and find their place in various industrial and commercial applications. Committed to excellence, timely delivery, and customer satisfaction, Harsh Flanges serves a diverse range of sectors, including water treatment, HVAC, chemical, and food processing industries.
The DIN 2632 PN10 Weld Neck Flanges are made from carbon steel, stainless steel, or alloy steel, incorporating key elements like iron, carbon, chromium, and nickel. They typically boast tensile strength between 400–600 MPa and yield strength around 250–350 MPa, depending on the material grade. These flanges are known for their corrosion resistance, ease of welding, and structural stability under nominal pressure ratings of up to 10 bar, making them suitable for a variety of low to medium-pressure piping systems.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
|
Germany standard flange DIN 2632 welding neck flanges; nominal pressure 10 |
||||||||||||||||
|
Brides à souder à collerette DIN 2632: pression nominale 10 |
||||||||||||||||
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | – | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
| 21,3 | – | 32 | ||||||||||||||
| 20 | – | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
| 26,9 | – | 40 | ||||||||||||||
| 25 | – | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
| 33,7 | – | 45 | ||||||||||||||
| 32 | – | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
| 42,4 | – | 56 | ||||||||||||||
| 40 | – | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
| 48,3 | – | 64 | ||||||||||||||
| 50 | – | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
| 60,3 | – | 75 | ||||||||||||||
| 65 | 76,1 | – | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
| 80 | 88,9 | – | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
| 100 | – | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
| 114,3 | – | 131 | ||||||||||||||
| 125 | – | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
| 139,7 | – | 156 | ||||||||||||||
| 150 | – | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
| 168,3 | – | 184 | ||||||||||||||
| 200 | 219,1 | – | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 8 | M 20 | 22 | 11,3 |
| 250 | – | 267 | 395 | 26 | 350 | 68 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 20 | 22 | 14,7 |
| 273 | – | 292 | ||||||||||||||
| 300 | 323,9 | – | 445 | 26 | 400 | 68 | 344 | 7,1 | 12 | 16 | 370 | 4 | 12 | M 20 | 22 | 17,4 |
| 350 | 355,6 | – | 505 | 26 | 460 | 68 | 385 | 7,1 | 12 | 16 | 430 | 4 | 16 | M 20 | 22 | 23,6 |
| – | 368 | 21,6 | ||||||||||||||
| 400 | 406,4 | – | 565 | 26 | 515 | 72 | 440 | 7,1 | 12 | 16 | 482 | 4 | 16 | M 24 | 26 | 28,6 |
| – | 419 | 26,2 | ||||||||||||||
| (450) | 457 | – | 615 | 28 | 565 | 72 | 488 | 7,1 | 12 | 16 | 532 | 4 | 20 | M 24 | 26 | 31,5 |
| 500 | 508 | – | 670 | 28 | 620 | 75 | 542 | 7,1 | 12 | 16 | 585 | 4 | 20 | M 24 | 26 | 38,1 |
| 600 | 610 | – | 780 | 28 | 725 | 80 | 642 | 7,1 | 12 | 18 | 685 | 5 | 20 | M 27 | 30 | 44,6 |
| 700 | 711 | – | 895 | 30 | 840 | 80 | 745 | 8 | 12 | 18 | 800 | 5 | 24 | M 27 | 30 | 62,4 |
| 800 | 813 | – | 1015 | 32 | 950 | 90 | 850 | 8 | 12 | 18 | 905 | 5 | 24 | M 30 | 33 | 84,1 |
| 900 | 914 | – | 1115 | 34 | 1050 | 95 | 950 | 10 | 12 | 20 | 1005 | 5 | 28 | M 30 | 33 | 98,5 |
| 1000 | 1016 | – | 1230 | 34 | 1160 | 95 | 1052 | 10 | 16 | 20 | 1110 | 5 | 28 | M 33 | 36 | 115 |
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of DIN 2632 PN10 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll often find DIN 2632 PN10 Weld Neck Flanges in applications such as water distribution, fire protection systems, HVAC setups, chemical plants, and food processing pipelines. Their weld neck design enhances strength and stress distribution, making them ideal for situations involving thermal expansion, vibration, or fluctuating pressure. These flanges ensure leak-proof connections, straightforward maintenance, and a long service life. By adhering to DIN standards, they guarantee compatibility and seamless integration into existing systems, making them a trusted choice for engineers and plant operators involved in industrial infrastructure projects.
Yes, we offer custom sizes for DIN 2632 PN10 Weld Neck Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| 18 inch DIN 2632 PN10 Carbon Steel Weld Neck Flange | DIN 2632 PN10 Weld Neck Flange Dimensions in mm |

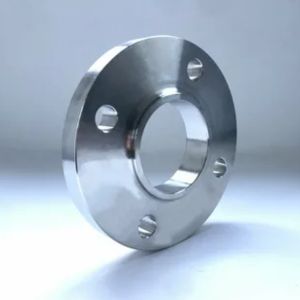

| Alloy Steel DIN 2632 PN10 Welding Neck Flanges | Copper Nickel DIN 2632 PN10 Weld Neck Flanges at Best Price |
| DIN 2632 PN10 Weld Neck Flange Dimensions | Raised Face DIN 2632 PN10 Weld Neck Flange Manufacturer |
| DIN 2632 PN10 Welding Neck FF Flange Supplier | Suppliers of DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 Weld Neck Pipe Flanges Wholesaler | DIN 2632 PN10 WNRF Flanges Supplier |
| 30 inch DIN 2632 PN10 Weld Neck Flange Dealer | Raised Face DIN 2632 PN10 Weld Neck Flanges Manufacturer |
| Nickel Alloy DIN 2632 PN10 Welding Neck Flange | Mild Steel DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 WNRF Flange Stockist in India | Raised Faced DIN 2632 PN10 welding-neck flanges Dealer in Mumbai |
| Raised Face DIN 2632 PN10 Weld Neck Plate Flanges | Titanium DIN 2632 PN10 Welding Neck Flanges |
| German Standard DIN 2632 PN10 Weld Neck Flanges | DIN 2632 PN10 Weld Neck Flange Supplier in India |

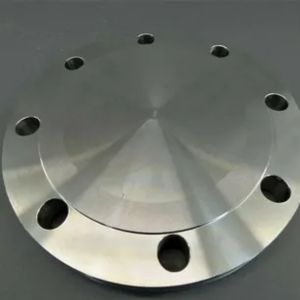

| Stainless Steel DIN 2632 PN10 Weld Neck Flange | ASTM B564 Raised Faced DIN 2632 PN10 Weld Neck Flanges |
| DIN 2632 PN10 WNRF Flange Exporter | DIN 2632 PN10 Weld Neck Flange Pressure Ratings |
| DIN 2632 PN10 Weld Neck Flange Manufacturer | Flat Face DIN 2632 PN10 Weld Neck Flange Manufacturer |
| DIN 2632 PN10 WNRF Flanges Supplier in Mumbai | Alloy Steel DIN 2632 PN10 Weld Neck Flanges Manufacturer in Mumbai |
| DIN 2632 PN10 Welding Neck Flanges Supplier in India | MS DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 Large Diameter Weld Neck Flange | 30 Inch DIN 2632 PN10 Weld Neck Pipe Flange Dimensions |
| Carbon Steel Raised Face DIN 2632 PN10 Weld Neck Flange Stockist | Duplex Steel DIN 2632 PN10 WNRF Flanges Supplier in Mumbai |
| ASME SA105N Raised Faced DIN 2632 PN10 Weld Neck Flanges | 18 inch Carbon Steel DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 WNRF Flanges Distributor in Mumbai | Flat Face DIN 2632 PN10 Weld Neck Flanges Exporter |
| DIN 2632 PN10 Weld Neck Pipe Flanges Supplierin Mumbai | Duplex Steel DIN 2632 PN10 Weld Neck Flanges |
| 8 Inch DIN 2632 PN10 Welding Neck Pipe Flanges | DIN 2632 PN10 Weld Neck Flanges Stockist |
| 4 inch Stainless Steel DIN 2632 PN10 Weld Neck Flange | DIN 2632 PN10 Weld Neck RF Flanges Stockholder |
| Carbon Steel DIN 2632 PN10 Welding Neck Flange | DIN 2632 PN10 Weld Neck RF Flange Supplier |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
