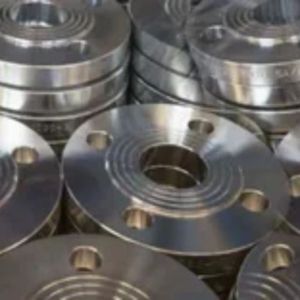

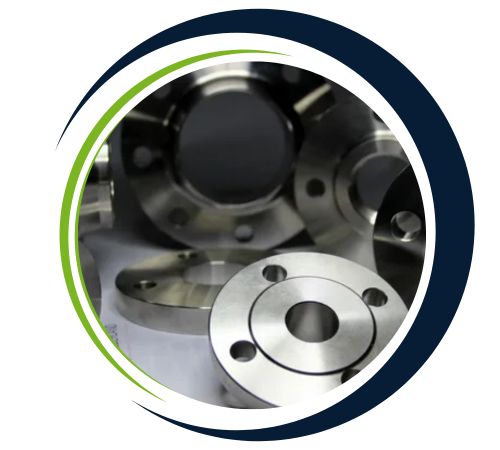

Harsh Flanges is a well-respected manufacturer and supplier of top-notch DIN 2573 PN6 Slip On Flanges, proudly based in Mumbai, India. Known for their precision engineering and unwavering quality, Harsh Flanges caters to a variety of industries, including oil & gas, petrochemical, power generation, and water treatment. They offer an extensive selection of flanges that meet international standards and can be customized to fit specific customer needs. With state-of-the-art manufacturing facilities and a talented workforce, Harsh Flanges guarantees timely deliveries, competitive pricing, and outstanding customer service, making them a reliable partner for industrial piping solutions both in India and around the globe.
When it comes to DIN 2573 PN6 Slip On Flanges, they are usually crafted from carbon steel (like ASTM A105), stainless steel (such as SS304/316), or alloy steel, depending on what the application calls for. Their chemical makeup includes elements like carbon, manganese, silicon, chromium, and nickel, which enhance their corrosion resistance and strength. On the mechanical side, these flanges boast a tensile strength between 485 to 620 MPa, a yield strength of about 250 MPa, and a minimum elongation of 20%. They are perfect for low-pressure pipeline applications, providing excellent weldability, durability, and reliable performance under moderate temperature conditions.
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of DIN 2573 PN6 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Germany standard flange DIN 2573 for soldering or welding Nominal Pressure 6 | |||||||||||
| Pipe | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||||
| Rated Diameter | d1 | d5 | D | b | c | k | Holes | Thread | d2 | Kg | |
| ISO Series 1 | DIN Series 2 | ||||||||||
| 15 | – | 20 | 21 | 80 | 12 | 5 | 55 | 4 | M 10 | 11 | 0,41 |
| 21,3 | – | 22 | |||||||||
| 20 | – | 25 | 26 | 90 | 14 | 5 | 65 | 4 | M 10 | 11 | 0,60 |
| 26,9 | – | 27,6 | |||||||||
| 25 | – | 30 | 31 | 100 | 14 | 5 | 75 | 4 | M 10 | 11 | 0,74 |
| 33,7 | – | 34,4 | |||||||||
| 32 | – | 38 | 39 | 120 | 16 | 5 | 90 | 4 | M 12 | 14 | 1,19 |
| 42,4 | – | 43,1 | |||||||||
| 40 | – | 44,5 | 45,5 | 130 | 16 | 5 | 100 | 4 | M 12 | 14 | 1,39 |
| 48,3 | – | 49 | |||||||||
| 50 | – | 57 | 58,1 | 140 | 16 | 6 | 110 | 4 | M 12 | 14 | 1,53 |
| 60,3 | – | 61,1 | |||||||||
| 65 | 76,1 | – | 77,1 | 160 | 16 | 6 | 130 | 4 | M 12 | 14 | 1,89 |
| 80 | 88,9 | – | 90,3 | 190 | 18 | 7 | 150 | 4 | M 16 | 18 | 2,98 |
| 100 | – | 108 | 109,6 | 210 | 18 | 7 | 170 | 4 | M 16 | 18 | 3,46 |
| 114,3 | – | 115,9 | |||||||||
| 125 | – | 133 | 134,8 | 240 | 20 | 7 | 200 | 8 | M 16 | 18 | 4,60 |
| 139,7 | – | 141,6 | |||||||||
| 150 | – | 159 | 161,1 | 265 | 20 | 7 | 225 | 8 | M 16 | 18 | 5,22 |
| 168,3 | – | 170,5 | |||||||||
| 200 | 219,1 | – | 221,8 | 320 | 22 | 7 | 280 | 8 | M 16 | 18 | 7,15 |
| 250 | – | 267 | 270,2 | 375 | 24 | 7 | 335 | 12 | M 16 | 18 | 9,61 |
| 273 | – | 276,2 | |||||||||
| 300 | 323,9 | – | 327,6 | 440 | 24 | 7 | 395 | 12 | M 20 | 22 | 12,60 |
| 350 | 355,6 | – | 359,7 | 490 | 26 | 7 | 445 | 12 | M 20 | 22 | 15,60 |
| – | 368 | 372,2 | |||||||||
| 400 | 406,4 | – | 411 | 540 | 28 | 7 | 495 | 16 | M 20 | 22 | 18,40 |
| – | 419 | 423,7 | |||||||||
| (450)* | 457 | – | 462,5 | 595 | 30 | 7 | 550 | 16 | M 20 | 22 | 21,40 |
| 500 | 508 | – | 531,6 | 645 | 30 | 7 | 600 | 20 | M 20 | 22 | 24,60 |
DIN 2573 PN6 Slip On Flanges are commonly found in low-pressure piping systems where moderate corrosion resistance and straightforward installation are key. They are frequently used in sectors like chemical processing, water supply, wastewater treatment, HVAC, and fire protection systems, allowing for secure pipe connections while making disassembly and maintenance a breeze. Their slip-on design is particularly advantageous for applications that require welding on both the inner and outer edges. These flanges are especially suited for non-critical systems with low operating pressure, offering a cost-effective and trustworthy solution for fluid transportation and distribution.
Yes, we offer custom sizes for DIN 2573 PN6 Slip On Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
