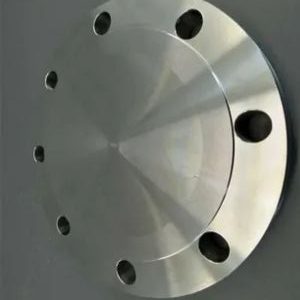

Harsh Flanges stands out as a top-notch manufacturer and supplier of DIN 2527 PN40 Blind Flanges, right here in Mumbai, India. We take pride in delivering flanges that not only meet but exceed international standards, ensuring they’re reliable and perform well across a range of industrial applications. Our DIN 2527 PN40 Blind Flanges are expertly crafted to seal the ends of piping systems, effectively stopping the flow of liquids or gases. They’re perfect for pressure testing and maintenance, providing secure and efficient solutions for all your piping needs.
When it comes to materials, DIN 2527 PN40 Blind Flanges are usually made from robust options like carbon steel (think ASTM A105) and stainless steel (like ASTM A182 F304, F316). These materials are known for their impressive strength, resistance to corrosion, and long-lasting durability. Designed to handle pressures up to 40 bar (PN40), these flanges are compatible with various pipe materials. Their mechanical properties boast high tensile strength, impact resistance, and the ability to endure thermal and mechanical stresses, ensuring they perform reliably even in tough environments.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| DIN 2527 PN40 (in mm) | ||||||
| Nominal Pipe Size | Flanges Dia | Thk of Flange | Dia of Bolt Circle | No. of | Dia of Bolt Holes | |
| DIN | D | B | K | holes | D2 | KG |
| 10 | 90 | 16 | 60 | 4 | 14 | 0.72 |
| 15 | 95 | 16 | 65 | 4 | 14 | 0.81 |
| 20 | 105 | 18 | 75 | 4 | 14 | 1.14 |
| 25 | 115 | 18 | 85 | 4 | 14 | 1.38 |
| 32 | 140 | 18 | 100 | 4 | 18 | 2.03 |
| 40 | 150 | 18 | 110 | 4 | 18 | 2.35 |
| 50 | 165 | 20 | 125 | 4 | 18 | 3.20 |
| 65 | 185 | 22 | 145 | 8 | 18 | 4.29 |
| 80 | 200 | 24 | 160 | 8 | 18 | 5.54 |
| 100 | 235 | 24 | 190 | 8 | 22 | 7.60 |
| 125 | 270 | 26 | 220 | 8 | 26 | 10.82 |
| 150 | 300 | 28 | 250 | 8 | 26 | 14.60 |
| 175 | 350 | 32 | 295 | 12 | 30 | 22.04 |
| 200 | 375 | 34 | 320 | 12 | 30 | 27.21 |
| 250 | 450 | 38 | 385 | 12 | 33 | 44.38 |
| 300 | 515 | 42 | 450 | 16 | 33 | 64.17 |
| 350 | 580 | 46 | 510 | 16 | 36 | 89.52 |
| 400 | 660 | 50 | 585 | 16 | 39 | 126.76 |
| 500 | 755 | 56 | 670 | 20 | 42 | 184.63 |
| 600 | 890 | 62 | 795 | 20 | 48 | 285.17 |
| 700 | 995 | 64 | 900 | 24 | 48 | 368.83 |
| 800 | 1140 | 70 | 1030 | 24 | 56 | 528.39 |
| 900 | 1250 | 76 | 1140 | 28 | 56 | 690.99 |
| 1000 | 1360 | 84 | 1250 | 28 | 56 | 912.42 |
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of DIN 2527 PN40 Blind Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find DIN 2527 PN40 Blind Flanges in a variety of industries, including chemical processing, power generation, oil and gas, and water treatment. Their thoughtful design makes sealing pipe ends a breeze, which is why they’re so popular for pressure testing and system maintenance. These flanges are built for high-pressure applications where safety and reliability are non-negotiable. Plus, their compatibility with different pipe materials and straightforward installation make them a go-to choice for critical applications that demand top-notch quality standards.
Yes, we offer custom sizes for DIN 2527 PN40 Blind Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2527 PN40 Blind Pipe Flanges Wholesaler | DIN 2527 PN40 BLRF Flanges Supplier |
| Carbon Steel Raised Face DIN 2527 PN40 Blind Flange Stockist | Duplex Steel DIN 2527 PN40 BLRF Flanges Supplier in Mumbai |
| Stainless Steel DIN 2527 PN40 Blind Flange | ASTM B564 Raised Faced DIN 2527 PN40 Blind Flanges |
| DIN 2527 PN40 Large Diameter Blind Flange | 30 Inch DIN 2527 PN40 Blind Pipe Flange Dimensions |
| 30 inch DIN 2527 PN40 Blind Flange Dealer | Raised Face DIN 2527 PN40 Blind Flanges Manufacturer |
| DIN 2527 PN40 Blind Pipe Flanges Supplier in Mumbai | Duplex Steel DIN 2527 PN40 Blind Flanges |
| 4 inch Stainless Steel DIN 2527 PN40 Blind Flange | DIN 2527 PN40 Blind RF Flanges Stockholder |
| Carbon Steel DIN 2527 PN40 Blind Flange | DIN 2527 PN40 Blind RF Flange Supplier |
| Alloy Steel DIN 2527 PN40 Blind Flanges | Copper Nickel DIN 2527 PN40 Blind Flanges at Best Price |
| DIN 2527 PN40 Blind Flange Dimensions | Raised Face DIN 2527 PN40 Blind Flange Manufacturer |
| Raised Face DIN 2527 PN40 Blind Plate Flanges | Titanium DIN 2527 PN40 Blind Flanges |
| Nickel Alloy DIN 2527 PN40 Blind Flange | Mild Steel DIN 2527 PN40 Blind Flange |
| DIN 2527 PN40 BLRF Flanges Distributor in Mumbai | Flat Face DIN 2527 PN40 Blind Flanges Exporter |
| DIN 2527 PN40 BLRF Flange Stockist in India | Raised Faced DIN 2527 PN40 Slip-On flanges Dealer in Mumbai |
| 18 inch DIN 2527 PN40 Carbon Steel Blind Flange | DIN 2527 PN40 Blind Flange Dimensions in mm |
| DIN 2527 PN40 Blind Flanges Supplier in Mumbai | MS DIN 2527 PN40 Blind Flange |
| 8 Inch DIN 2527 PN40 Blind Pipe Flanges | DIN 2527 PN40 Blind Flanges Stockist |
| DIN 2527 PN40 BLRF Flanges Supplier in Mumbai | Alloy Steel DIN 2527 PN40 Blind Flanges Manufacturer in India |
| ASME SA105N Raised Faced DIN 2527 PN40 Blind Flanges | 18 inch Carbon Steel DIN 2527 PN40 Blind Flange |
| German Standard DIN 2527 PN40 Blind Flanges | DIN 2527 PN40 Blind Flange Supplier in Mumbai |
| DIN 2527 PN40 Blind FF Flange Supplier | Suppliers of DIN 2527 PN40 Blind Flange |
| DIN 2527 PN40 Blind Flange Manufacturer | Flat Face DIN 2527 PN40 Blind Flange Manufacturer |
| DIN 2527 PN40 BLRF Flange Exporter | DIN 2527 PN40 Blind Flange Pressure Ratings |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
