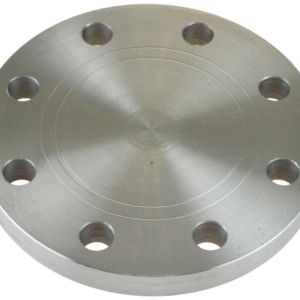

Harsh Flanges stands out as a top manufacturer and supplier of BLRF (Blind Raised Face) Flanges, proudly based in Mumbai, India. These flanges are designed to effectively seal the ends of piping systems, valves, or openings in pressure vessels, making them crucial for situations where isolation, pressure testing, or future expansion is necessary. Our BLRF flanges are crafted in line with international standards like ANSI/ASME B16.5, B16.47, and DIN, and come in a variety of sizes and pressure classes. Renowned for their precise dimensions, corrosion resistance, and robust structural integrity, Harsh Flanges caters to industries such as oil & gas, petrochemicals, power generation, and marine engineering.
We produce our BLRF flanges using materials like carbon steel (ASTM A105), stainless steel (A182 F304/F316), and alloy steel (F11/F22), carefully chosen based on the specific service environment. These flanges boast impressive tensile strengths of up to 550 MPa, yield strengths exceeding 250 MPa, and elongation rates of 20% or more, ensuring they are both strong and flexible. The raised face (RF) design enhances gasket compression, delivering a dependable, leak-tight seal even under moderate to high-pressure conditions. Each BLRF flange from Harsh Flanges undergoes rigorous inspection for flatness, hardness, and surface finish to comply with global engineering standards.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| BLRF Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS SP44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| BLRF Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| BLRF Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| BLRF Flange | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| BLRF Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| BLRF Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| BLRF Flanges Production technique | Forged, Heat treated and machined |
| BLRF Flanges Connect Type / Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| BLRF Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| BLRF Flanges Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| BLRF Flange Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of BLRF Flange | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 F316 Stainless Steel Flanges |
| BLRF Flange Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| BLRF Flanges Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi & Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of BLRF Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
BLRF (Blind Raised Face) Flanges are commonly utilized to seal the ends of piping systems or to isolate sections during maintenance, testing, or shutdowns. Harsh Flanges provides these flanges to vital sectors such as oil & gas, chemical processing, pharmaceuticals, marine, and power plants. They are particularly beneficial in high-pressure systems and scenarios where future expansion might be on the table. The raised face design offers an improved sealing surface when paired with the right gaskets. Additionally, BLRF flanges are employed for hydrostatic testing and pipeline blanking, ensuring safety, efficiency, and the integrity of the system.
| ASME/ANSI B16.5 | BLRF Flange |
| PRESSURE CLASS | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| DIN EN 1092-1 Face Dimensions | PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400 |
| BS 4504 SEC 3.1, BS 4504[PART 1], BS 1560 BOSS | BLRF Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for BLRF Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
