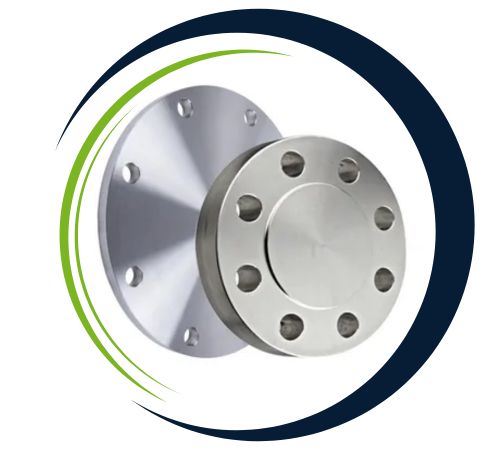

Harsh Flanges is a reliable manufacturer and supplier of API Type 6BX Blind Flanges (15,000 PSI), based in Mumbai, India. These flanges are specifically designed for high-pressure systems and adhere to API 6A specifications, making them perfect for pressure control equipment in challenging oilfield environments. Our 6BX blind flanges are expertly crafted to withstand working pressures of up to 15,000 PSI, ensuring a tight seal for closed pipe ends. Serving clients worldwide in the upstream oil & gas, drilling, and wellhead sectors, Harsh Flanges is committed to delivering top-notch material quality, precise dimensions, and strict compliance with API performance and safety standards.
API 6BX blind flanges are made from high-strength materials like ASTM AISI 4130 alloy steel or carbon steel that’s heat-treated to meet API 6A standards. These flanges boast a tensile strength of over 655 MPa, yield strength exceeding 450 MPa, and impressive impact resistance even under extreme pressure and temperature conditions. Built for pressure classes up to 15,000 PSI, they feature a ring-type joint (RTJ) sealing face to guarantee leak-proof performance. Each flange undergoes rigorous testing for hardness, impact, and pressure integrity, complying with NACE MR0175 standards for sour service environments when necessary.
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of API – Type 6BX Welding Neck Flanges 15,000 PSI, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specification Table Of : | API Type 6BX Flange |
| ADNOC Approved Manufacturer Of Standards | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Temperature Ratings | 150 LB To 2500 LB |
| Size Chart | (1/2″) To (48″) |
| Manufacturing Process |
|
| Face Type Details | Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face. |
| Forging Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness | NPS ≤ 18 |
| Flanges High Temperature | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Our Top Selling Products | Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On |
| Buy Flanges For Pipe Connection | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Type Of Making Format | Plate /Forged/ Threaded |
| Bore Diameter | NPS ≤ 10 |
| Normal Pipe Sizes | Daimeter Of Flanges | Daimeter Of RTJ | Hight Of Flanges | Flanges Bolting | Flanges Hub | RING | ||||||||
| Normal Pipe Sizes | Outside Daimeter | C | K | P | T | Q | LN | BC | N | H | X | HL | JL | R / RX |
| 2-1/16″ | 215 | 3 | 124 | 95.25 | 46.1 | 38.1 | 109.5 | 165.10 | 8 | 26 | 104.8 | 60.3 | 43.7 | 24 |
| 2-9/16″ | 245 | 3 | 137 | 107.95 | 49.3 | 41.3 | 112.7 | 190.50 | 8 | 29 | 123.8 | 73.0 | 54.9 | 27 |
| 3-1/8″ | 265 | 3 | 168 | 136.53 | 55.6 | 47.7 | 125.4 | 203.20 | 8 | 32 | 133.3 | 88.9 | 67.5 | 35 |
| 4-1/16″ | 310 | 3 | 194 | 161.93 | 62.0 | 54.0 | 131.8 | 241.30 | 8 | 35 | 161.9 | 114.3 | 88.1 | 39 |
| 5-1/8″ | 375 | 3 | 229 | 193.68 | 81.0 | 73.1 | 163.5 | 292.10 | 8 | 42 | 196.8 | 141.3 | 110.3 | 44 |
| 7-1/16″ | 395 | 6 | 248 | 211.15 | 92.1 | 82.6 | 181.0 | 317.50 | 12 | 39 | 228.6 | 168.3 | 132.6 | 46 |
| 9″ | 485 | 6 | 318 | 269.88 | 103.2 | 92.1 | 223.8 | 393.70 | 12 | 45 | 292.1 | 219.1 | 173.8 | 50 |
| 11″ | 585 | 6 | 371 | 323.85 | 119.1 | 108.0 | 265.1 | 482.60 | 12 | 51 | 368.3 | 273.1 | 216.7 | 54 |
API Type 6BX Blind Flanges (15,000 PSI) are essential in high-pressure oilfield applications, including wellheads, blowout preventers (BOPs), Christmas trees, and choke & kill manifolds. Harsh Flanges provides these flanges to operators and OEMs in the upstream oil & gas industry, where safety, durability, and leak prevention are paramount. These blind flanges effectively seal off open ends of pressure systems while enduring significant operational stress. Their sturdy construction and RTJ sealing make them suitable for both onshore and offshore drilling operations. It’s important to note that 6BX flanges are not interchangeable with 6B flanges, ensuring superior performance for high-pressure applications.
| NPS In Inch. | DN In MM | Flange Outside Daimeter A In MM | Flange Thickness D In MM | API 6a SORF Flange Weight In KG | API 6a WN Flange Weight In KG | API 6a BLRF Flange Weight In KG |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for API – Type 6BX Welding Neck Flanges 15,000 PSI to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
