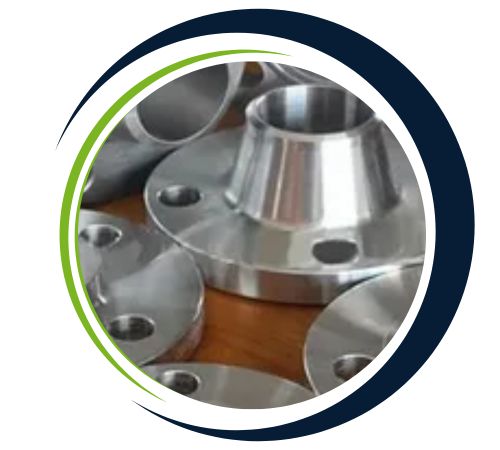

Based in Mumbai, India, Harsh Flanges is a reputable producer and supplier of high-performance API Type 6B Welding Neck Flanges with a 5,000 PSI rating. These flanges are made strictly in accordance with API 6A standards and are designed for high-pressure and critical oilfield applications. In harsh operating conditions, our welding neck flanges, which are renowned for their sturdy design and accurate fit, guarantee safe and leak-proof connections. Harsh Flanges meets the highest operational and safety standards while providing reliable flange solutions to the oil and gas, petrochemical, and energy sectors worldwide thanks to its cutting-edge manufacturing facilities and strict quality control.
Stainless steel, alloy steel, or premium carbon steel are commonly used in the production of API Type 6B Welding Neck Flanges (5,000 PSI). These materials offer exceptional mechanical strength and resistance to corrosion because they contain vital elements like carbon, manganese, chromium, and molybdenum. Mechanical characteristics include good elongation for structural dependability, a tensile strength of 550–850 MPa, and a yield strength of 250–600 MPa. These high-pressure flanges are perfect for critical services in demanding industrial settings because they retain their structural integrity even under high mechanical and thermal stresses.
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of API – Type 6B Welding Neck Flanges 5,000 PSI, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specification Table Of : | API Type 6B Flange |
| ADNOC Approved Manufacturer Of Standards | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Temperature Ratings | 150 LB To 2500 LB |
| Size Chart | (1/2″) To (48″) |
| Manufacturing Process |
|
| Face Type Details | Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face. |
| Forging Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness | NPS ≤ 18 |
| Flanges High Temperature | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Our Top Selling Products | Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On |
| Buy Flanges For Pipe Connection | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Type Of Making Format | Plate /Forged/ Threaded |
| Bore Diameter | NPS ≤ 10 |
| Normal Pipe Sizes | Daimeter Of Flanges | Daimeter Of RTJ | Hight Of Flanges | Flanges Bolting | Flanges Hub | RING | ||||||||
| Normal Pipe Sizes | Outside Daimeter | C | K | P | T | Q | LN | BC | N | H | X | HL | JL | R / RX |
| 2-1/16″ | 215 | 3 | 124 | 95.25 | 46.1 | 38.1 | 109.5 | 165.10 | 8 | 26 | 104.8 | 60.3 | 43.7 | 24 |
| 2-9/16″ | 245 | 3 | 137 | 107.95 | 49.3 | 41.3 | 112.7 | 190.50 | 8 | 29 | 123.8 | 73.0 | 54.9 | 27 |
| 3-1/8″ | 265 | 3 | 168 | 136.53 | 55.6 | 47.7 | 125.4 | 203.20 | 8 | 32 | 133.3 | 88.9 | 67.5 | 35 |
| 4-1/16″ | 310 | 3 | 194 | 161.93 | 62.0 | 54.0 | 131.8 | 241.30 | 8 | 35 | 161.9 | 114.3 | 88.1 | 39 |
| 5-1/8″ | 375 | 3 | 229 | 193.68 | 81.0 | 73.1 | 163.5 | 292.10 | 8 | 42 | 196.8 | 141.3 | 110.3 | 44 |
| 7-1/16″ | 395 | 6 | 248 | 211.15 | 92.1 | 82.6 | 181.0 | 317.50 | 12 | 39 | 228.6 | 168.3 | 132.6 | 46 |
| 9″ | 485 | 6 | 318 | 269.88 | 103.2 | 92.1 | 223.8 | 393.70 | 12 | 45 | 292.1 | 219.1 | 173.8 | 50 |
| 11″ | 585 | 6 | 371 | 323.85 | 119.1 | 108.0 | 265.1 | 482.60 | 12 | 51 | 368.3 | 273.1 | 216.7 | 54 |
High-pressure oil and gas pipelines, drilling rigs, wellheads, refineries, and petrochemical processing facilities are the main applications for API Type 6B Welding Neck Flanges (5,000 PSI). They are perfect for harsh service conditions with varying pressure and temperature because of their long tapered neck, which guarantees even stress distribution. For applications where safety is of the utmost importance, these flanges are made to endure harsh conditions and guarantee welded, leak-proof connections. They are also frequently utilised in high-pressure valves, subsea equipment, and onshore and offshore production systems. They are an essential part of systems that need better pressure containment and structural stability because of their strength and dependability.
| NPS In Inch. | DN In MM | Flange Outside Daimeter A In MM | Flange Thickness D In MM | API 6a SORF Flange Weight In KG | API 6a WN Flange Weight In KG | API 6a BLRF Flange Weight In KG |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for API – Type 6B Welding Neck Flanges 5,000 PSI to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
