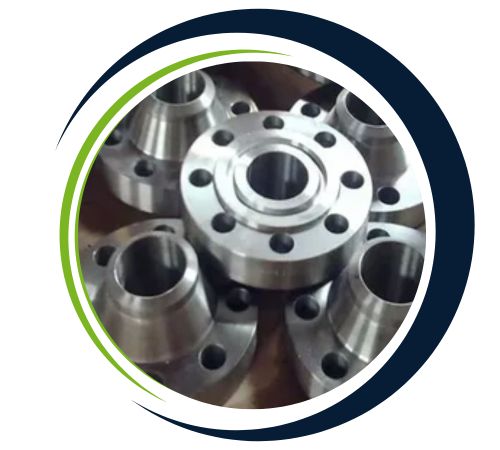

Harsh Flanges, located in Mumbai, India, stands out as a leading manufacturer and supplier of ANSI B16.5 Class 600 Flanges, specifically designed for high-pressure industrial piping applications. These flanges meet the ANSI B16.5 standard, capable of handling pressures up to 600 psi while ensuring reliable, leak-proof connections. Crafted from top-quality carbon steel, alloy steel, and stainless steel, Harsh Flanges guarantees precise manufacturing, durability, and adherence to international quality standards. Our Class 600 flanges are widely utilized in the oil & gas, petrochemical, power generation, and chemical sectors, delivering exceptional performance even in the most demanding environments.
ANSI B16.5 Class 600 Flanges are generally made from ASTM A105 carbon steel, along with ASTM A182 alloy and stainless steels, providing tensile strengths that range from 485 to over 620 MPa. These flanges boast impressive yield strength, toughness, and corrosion resistance, depending on the material grade. Their design is tailored for operation under high pressure and temperature conditions, ensuring mechanical integrity and a secure seal. Class 600 flanges are engineered to withstand mechanical stresses, thermal expansion, and corrosion, making them perfect for critical piping systems that demand reliable performance.
Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of ANSI B16.5 Class 600 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 600 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized Manufacturer of |
|
| Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Normal pipe size | Outside dia. of flange | Minimum thickness of flange | Overall Length | Bolt Circle | No. and Size of Holes | O.D. of raised face | |||
| Welding neck | Slip-on & socket welding | Lap Joint | |||||||
| O | Q | Y | Diam. | No. | dia. | R | |||
| 1/2 | 95 | 14.3 | 52.4 | 22.2 | 22.2 | 66.5 | 4 | 15 | 35 |
| 3/4 | 117 | 15.9 | 57.2 | 25.4 | 25.4 | 82.5 | 4 | 19 | 43 |
| 1 | 124 | 17.5 | 61.9 | 27.0 | 27.0 | 89.0 | 4 | 19 | 51 |
| 1-1/4 | 133 | 20.7 | 66.7 | 28.6 | 28.6 | 98.5 | 4 | 19 | 64 |
| 1-1/2 | 156 | 22.3 | 69.8 | 31.8 | 31.8 | 114.5 | 4 | 22 | 73 |
| 2 | 165 | 25.4 | 73.0 | 36.5 | 36.5 | 127.0 | 8 | 19 | 92 |
| 2-1/2 | 190 | 28.6 | 79.4 | 41.3 | 41.3 | 149.0 | 8 | 22 | 105 |
| 3 | 210 | 31.8 | 82.6 | 46.0 | 46.0 | 168.0 | 8 | 22 | 127 |
| 3-1/2 | 229 | 35.0 | 85.7 | 49.2 | 49.2 | 184.0 | 8 | 25 | 140 |
| 4 | 273 | 38.1 | 101.6 | 54.0 | 54.0 | 216.0 | 8 | 25 | 157 |
| 5 | 330 | 44.5 | 114.3 | 60.3 | 60.3 | 266.5 | 8 | 29 | 186 |
| 6 | 356 | 47.7 | 117.5 | 66.7 | 66.7 | 292.0 | 12 | 29 | 216 |
| 8 | 419 | 55.6 | 133.4 | 76.2 | 76.2 | 349.0 | 12 | 32 | 270 |
| 10 | 508 | 63.5 | 152.4 | 85.7 | 115.1 | 432.0 | 16 | 85 | 324 |
| 12 | 559 | 66.7 | 155.6 | 92.1 | 111.1 | 489.0 | 20 | 35 | 381 |
| 14 | 603 | 69.9 | 165.1 | 93.7 | 117.5 | 527.0 | 20 | 38 | 413 |
| 16 | 686 | 76.2 | 177.8 | 106.4 | 127.0 | 603.0 | 20 | 41 | 470 |
| 18 | 743 | 82.6 | 184.2 | 117.6 | 139.7 | 654.0 | 20 | 45 | 533 |
| 20 | 813 | 88.9 | 190.5 | 127.0 | 165.1 | 724.0 | 24 | 45 | 584 |
| 24 | 940 | 101.6 | 203.2 | 139.7 | 184.2 | 838.0 | 24 | 51 | 692 |
ANSI B16.5 Class 600 Flanges are widely used in high-pressure piping systems across various industries, including oil & gas refineries, petrochemical plants, power generation facilities, and chemical processing units. They are perfect for connecting pipes, valves, pumps, and equipment in steam, gas, and liquid transport systems. Their sturdy construction guarantees leak-proof joints in high-pressure and moderately high-temperature environments. These flanges are essential in upstream, midstream, and downstream sectors, covering pipeline transportation, refinery operations, and industrial manufacturing, where safety, reliability, and compliance are paramount.
Yes, we offer custom sizes for ANSI B16.5 Class 600 Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
