ANSI B16.47 Series A Flanges Manufacturer and Supplier in Mumbai, India

A top producer and supplier of ANSI B16.47 Series A Flanges, Harsh Flanges is situated in Mumbai, India, and is renowned for providing large-diameter piping systems with flanges that are precisely engineered and of superior quality. Our Series A flanges are perfect for heavy-duty and high-pressure applications because they are made to the American National Standards Institute’s (ANSI) specifications. These flanges are made with cutting-edge methods and strict quality control, guaranteeing superior performance, durability, and safety. Oil and gas, petrochemicals, power generation, and water treatment are just a few of the industries that Harsh Flanges serves. It provides prompt delivery, affordable prices, and technical assistance to both domestic and foreign markets.

ANSI B16.47 Series A Raised Face Flanges India, ANSI B16.47 Series A Class 300 Flanges United kingdom, ANSI B16.47 Series A Flange Mumbai, ANSI B16.47 Series A Plate Flange Mumbai, ANSI B16.47 Series A Class 150 Flange Mumbai, ANSI B16.47 Series A Forged Flanges Mumbai, ANSI B16.47 Series A Class 150 Pipe Flange Manufacturer in India.

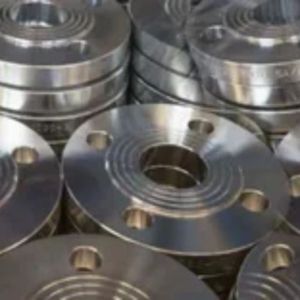

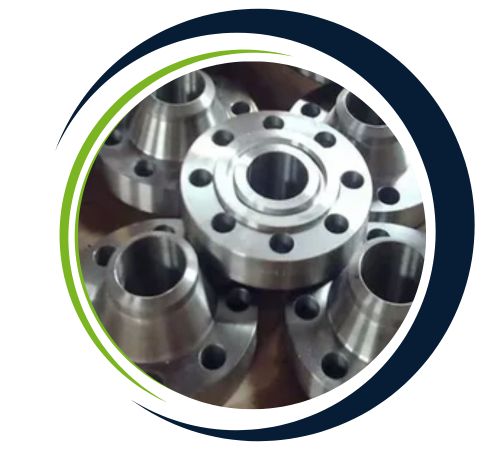

ANSI B16.47 Series A Flanges

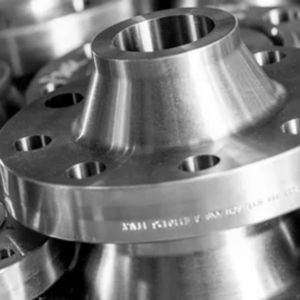

ANSI B16.47 Series A Raised Face Flanges

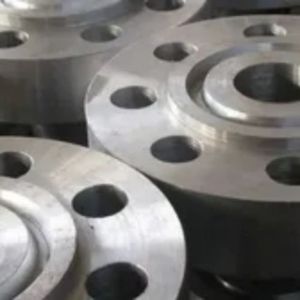

ANSI B16.47 Series A Class 300 Flanges

Carbon steel (ASTM A105), stainless steel (304/316), and alloy steel (A182 F11/F22) are common materials used in the production of ANSI B16.47 Series A Flanges. Depending on the grade, they are composed of iron, carbon, chromium, nickel, molybdenum, and manganese. With tensile strengths between 485 and 620 MPa and yield strengths between 250 and 450 MPa, these flanges have exceptional mechanical qualities. They provide strength, durability, and resistance to corrosion and are made for pressure classes 150 to 900. They are appropriate for corrosive, high-temperature, and high-pressure conditions due to their structural integrity.

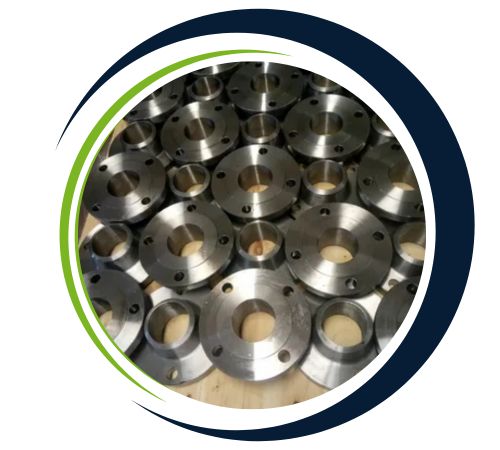

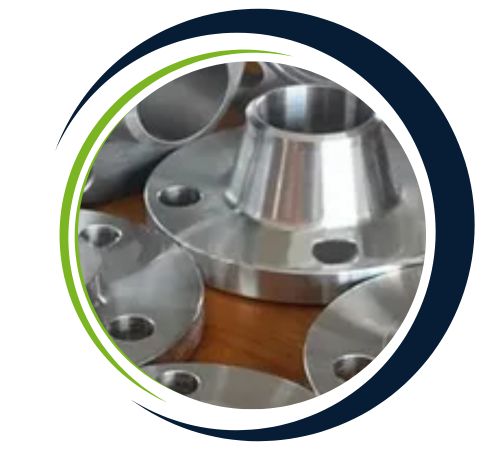

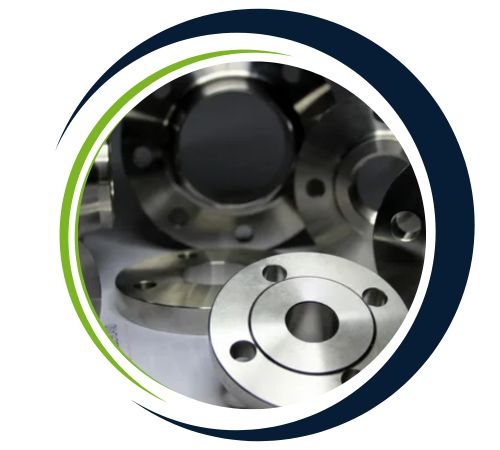

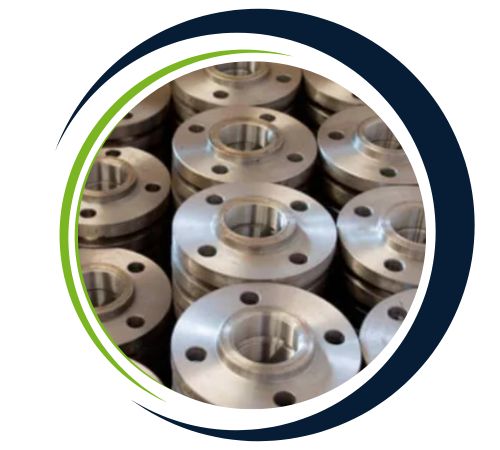

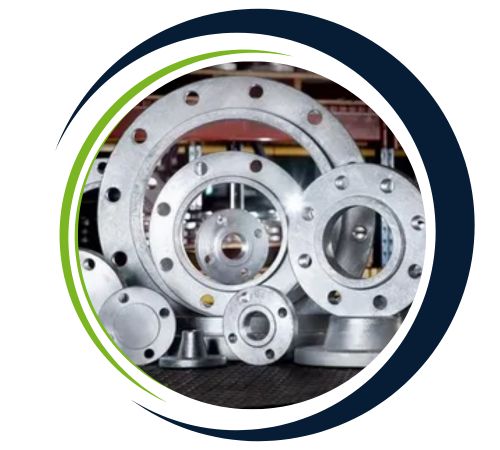

ANSI B16.47 Series A Class 150 Forged Flanges In India, ANSI B16.47 Series A Socket weld Flange Manufacturer in United kingdom, ANSI B16.47 Series A Class 600 Slip on Flanges Stockholder In Mumbai, PED Certified ANSI B16.47 Series A Blind Flanges Manufacturer In Mumbai, ANSI B16.47 Series A Class 900 Threaded Flanges Mumbai, ANSI B16.47 Series A Welding Neck Flange Mumbai, ANSI B16.47 Series A Lap Joint Flange Dealer in India.

Largest ANSI B16.47 Series A Flanges Supplier in Mumbai, India

Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of ANSI B16.47 Series A Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

ANSI B16.47 Series A Flanges Specification

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Size Range	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Main Types	Threaded / Forged / Plate /Screwed
Flange supporting material	Ring Joint, Gasket, Flange Bolts
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Most Common Types	Slip-On Ring Flange (SORF) Weld Neck Ring Flange (WNRF) Threaded Ring Flange Socket Weld Ring Flange (SWRF) Blind Ring Flange (BLRF) Ring Type Joint Flange (RTJF) Lap Joint Ring Flange (LJRF)
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean

ANSI B16.47 Series A Flanges Dimensions

ASME B16.47 Series A Slip On Flange Class 150 LBS Dimensions
NPS	A	B	I	Holes	C	D	F	G	Weight
22″	750	563.6	35	20	46	80	610	641	72.66
26″	870	665.2	35	24	68.5	90	724	749	120.47
28″	925	716	35	28	71.5	95	781	800	136.16
30″	985	766.8	35	28	74.5	100	832	857	161.04
32″	1060	817.6	41	28	81	106	889	914	205.07
34″	1110	868.4	41	32	82.5	110	940	965	216.76
36″	1170	919.2	41	32	90.5	120	997	1022	265
38″	1240	970	41	32	87.4	120	1060	1073	297.15
40″	1290	1020	41	36	90.5	125	1111	1124	319.65
42″	1345	1071.6	41	36	97	130	1168	1194	363.84
44″	1405	1122.4	41	40	102	136	1219	1245	414.1
46″	1455	1173.2	41	40	103	144	1270	1295	437
48″	1510	1224	41	44	108	150	1327	1359	484.52
50″	1570	1274.8	48	44	111	160	1378	1410	521.23
52″	1625	1325.6	48	44	116	170	1435	1460	581.51
54″	1685	1376.4	48	44	121	178	1492	1511	652.63
56″	1745	1427.2	48	48	124	188	1540	1575	713.31
58″	1805	1478	48	129	195	1590	1626	799.81
60″	1855	1528.8	48	52	132	200	1657	1676	836.15

ANSI B16.47 Series A Class 300 Flange Dimensions

ASME B16.47 Series A Slip On Flange Class 300 LBS Dimensions
NPS	A	B	I	Holes	C	D	F	G	Weight
22″	840	563.6	41	24	66.5	100	640	641	159
26″	970	665.2	44	28	79.5	130	720	749	238.15
28″	1035	716	44	28	85.5	147	775	800	295.5
30″	1090	766.8	48	28	92	160	825	857	338.8
32″	1150	817.6	51	28	98.5	170	880	914	395.57
34″	1205	868.4	51	28	102	180	935	965	446.43
36″	1270	919.2	54	32	105	190	990	1022	502.9
38″	1170	970	41	32	108	140	995	1029	256.33
40″	1240	1020	44	32	114	150	1050	1086	316.78
42″	1290	1071.6	44	32	119	156	1100	1137	343.98
44″	1355	1122.4	48	32	124	160	1150	1194	394.78
46″	1415	1173.2	51	28	129	170	1205	1245	455.19
48″	1465	1224	51	32	133	180	1255	1314	482.1
50″	1530	1274.8	54	32	140	190	1305	1359	557.35
52″	1580	1325.6	54	32	144	198	1355	1410	595.56
54″	1660	1376.4	60	28	152	210	1410	1467	741.05
56″	1710	1427.2	60	28	154	220	1465	1518	786.03
58″	1760	1478	60	32	159	228	1515	1575	824.35
60″	1810	1528.8	60	32	164	235	1585	1620	904.14

ANSI B16.47 Series A Flanges are primarily used in large-diameter, high-pressure applications across various industries. They are frequently found in power plants, water treatment facilities, chemical processing facilities, and pipelines carrying gas and oil. In crucial applications, these flanges offer robust, leak-proof connections for pumps, valves, and pipe systems. Their sturdy construction is particularly appropriate for settings with high temperatures, corrosive media, or mechanical stress. Because of their larger bolt circle diameters, Series A flanges are perfect for high-integrity sealing in large pipe systems. Their easy installation and long-term reliability make them a preferred choice for industrial engineers.

ANSI B16.47 Series A Raised Face Flanges India, ANSI B16.47 Series A Class 300 Flanges United kingdom, ANSI B16.47 Series A Flange Mumbai, ANSI B16.47 Series A Plate Flange Mumbai, ANSI B16.47 Series A Class 150 Flange Mumbai, ANSI B16.47 Series A Forged Flanges Mumbai, ANSI B16.47 Series A Class 150 Pipe Flange Manufacturer in India.

Types of ANSI B16.47 Series A Flanges

Are Custom Sizes Available for ANSI B16.47 Series A Flanges?

Yes, we offer custom sizes for ANSI B16.47 Series A Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
