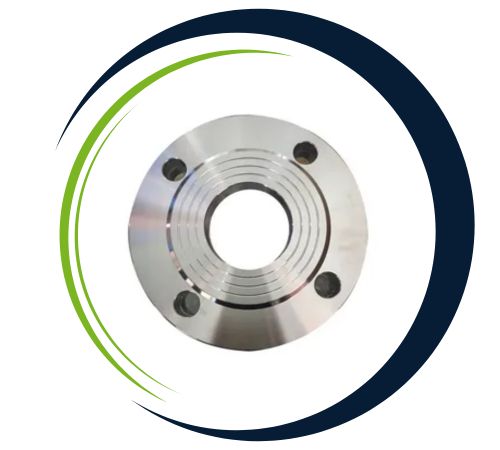

Based in Mumbai, India, Harsh Flanges is a top producer and supplier of high-grade alloy steel plate flanges, catering to a variety of global industries. Our plate flanges are known for their exceptional performance, dependability, and durability due to our meticulous engineering, premium raw materials, and rigorous adherence to global standards. In systems with low or high pressure, our alloy steel plate flanges are made to offer safe connections between pipes, valves, and equipment. Harsh Flanges is a reliable partner for industrial piping solutions because of our dedication to providing excellent products, affordable prices, and prompt deliveries.
An alloy comprising chromium (2–9%), molybdenum (0.5–1.2%), nickel, carbon, manganese, silicon, phosphorus, and sulphur is used to make alloy steel plate flanges. The flanges perform exceptionally well under a range of pressures and temperatures thanks to their composition, which also gives them exceptional mechanical strength and resistance to corrosion. Mechanically, they offer elongation of about 20%, a minimum yield strength of 275 MPa, and tensile strength ranging from 485 to 620 MPa. Because of the plate design’s ease of alignment and bolting, these flanges can be used in a variety of industrial settings and guarantee strong, long-lasting connections that are leak-proof.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 Ff11 Alloy Steel Flanges |
| Grades | Alloy Steel f1, f5, f9, f11, f22, f91 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Harsh Flanges, a premier supplier in Mumbai, India, specializes in high-quality Alloy Steel Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Industries including oil and gas, petrochemical, power generation, chemical processing, water treatment, and marine engineering all make extensive use of alloy steel plate flanges. In low- and moderate-pressure systems where welding is not necessary, they are perfect for joining pipes, valves, pumps, and other equipment. These flanges offer safe, fastened connections that make disassembly, upkeep, and inspection simple. Even in difficult operating conditions, they can be used to transport liquids, gases, and chemicals due to their exceptional mechanical strength and resistance to corrosion. For piping systems to be secure, effective, and long-lasting, alloy steel plate flanges are necessary.
| Steel Grades | UNS Designation | Steel Names |
|---|---|---|
| ASTM A182 F1 | K12822 | C-0.5Mo |
| ASTM A182 F2 | K12122 | 0.5Cr-0.5Mo |
| ASTM A182 F5 | K41545 | 5Cr-0.5Mo |
| ASTM A182 F5a | K42544 | 5Cr-0.5Mo |
| ASTM A182 F9 | K90941 | 9Cr-1Mo |
| ASTM A182 F10 | S33100 | 20Ni-8Cr |
| ASTM A182 F91 | K90901 | 9Cr-1Mo-V |
| ASTM A182 F92 | K92460 | 9Cr-0.5Mo-1.8W-V |
| ASTM A182 F11 CL1 | K11597 | 1.25Cr–0.5Mo–Si |
| ASTM A182 F11 CL2 | K11572 | 1.25Cr–0.25Mo–Si |
| ASTM A182 F11 CL3 | K11572 | 1.25Cr–0.5Mo–Si |
| ASTM A182 F12 CL1 | K11562 | 1Cr-0.5Mo |
| ASTM A182 F12 CL2 | K11564 | 1Cr-0.5Mo |
| ASTM A182 F22 CL1 | K21590 | 2.25Cr-1Mo |
| ASTM A182 F22 CL3 | K21590 | 2.25Cr-1Mo |
| ASTM A182 F21 | K31545 | 3Cr-1Mo |
| ASTM A182 F122 | K91271 | – |
| ASTM A182 F911 | K91061 | – |
| ASTM A182 F3V | K31830 | – |
| ASTM A182 F3VCb | K31390 | – |
| ASTM A182 F22V | K31835 | 2.25Cr-1Mo-V |
| ASTM A182 F23 | K41650 | – |
| ASTM A182 F24 | K30736 | 2.25Cr-1Mo-0.25V-Ti-B |
| ASTM A182 FR | K22035 | – |
| ASTM A182 F36 | K21001 | 1.15Ni-0.65Cu-Mo-Co |
| ASME/ANSI B 16.5 | Plate Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Threaded Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Plate Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Alloy Steel Plate Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
