High-quality AISI 4140 Flanges for high-stress and high-temperature industrial applications are available from Harsh Flanges, a renowned manufacturer and supplier with headquarters in Mumbai, India. These flanges are made from AISI 4140 alloy steel, a versatile material perfect for critical operations, and are well-known for their strength, toughness, and fatigue resistance. Our AISI 4140 Flanges are extensively utilised in industries such as heavy engineering, power generation, and oil and gas, and they are manufactured in accordance with international standards. Harsh Flanges guarantees peak performance and enduring durability under demanding service conditions thanks to its sophisticated production capabilities, precise machining, and strict quality controls.
The chromium-molybdenum alloy steel used to make AISI 4140 flanges contains roughly 0.38–0.43% carbon, 0.75–1.00% manganese, 0.80–1.10% chromium, and 0.15–0.25% molybdenum. Outstanding strength, hardness, and fatigue and wear resistance are provided by this composition. Tensile strength of 655–1080 MPa, yield strength of 415–655 MPa, and good ductility with 20% elongation are among the mechanical characteristics. These flanges are ideal for applications requiring durability, impact resistance, and structural integrity over extended service periods because of their exceptional performance under high pressure and temperature.
| Size Chart | 1/2″ to 48″ |
|---|---|
| Pressure Rating | Class 150, 600, 300, 1500, 900, 2500 LBS |
| Pressure Calculation in DIN | 6/ 16/ 10/ 40/ 25Bar / PN6 PN16 PN10 PN40 PN25 PN64 |
| JIS | 5K, 16 K, 10 K, 30 K, 20 K, 63 K, 40 K |
| UNI | 6/ 16/ 10/ 40/ 25Bar |
| EN | 6/ 16/ 10/ 40/ 25Bar |
| Flange Face Type | Lap-Joint Face, Large Male-Female, Raised Face, Flat Face, Small Tongue, Small Male-Female, Ring Type Joint, Large Tongue & Groove Flanges manufacturer and Supplier |
| Flanges Marking | All Flanges are marked as follows: Supplier or Manufacturer’s Name, Size, Class, Bore, Dimension, Material, Heat No. Or according to the customer’s request. |
| Element | Content |
|---|---|
| Chromium | 0.80 Tp 1.10 |
| Manganese | 0.75 Tp 1.0 |
| Silicon | 0.15 To 0.30 |
| Carbon | 0.380 To 0.430 |
| Molybdenum | 0.15 To 0.25 |
| Sulfur | 0.040 |
| Phosphorous | 0.035 |
| Iron | Balance |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 655 MPa | 95000 psi |
| Bulk modulus | 140 GPa | 20300 ksi |
| Yield strength | 415 MPa | 60200 psi |
| Shear modulus | 80 GPa | 11600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Elongation at break (in 50 mm) | 25.70% | 25.70% |
| Hardness, Knoop | 219 | 219 |
| Hardness, Rockwell B | 92 | 92 |
| Hardness, Brinell | 197 | 197 |
| Hardness, Rockwell C | 13 | 13 |
| Machinability | 65 | 65 |
| Hardness, Vickers | 207 | 207 |

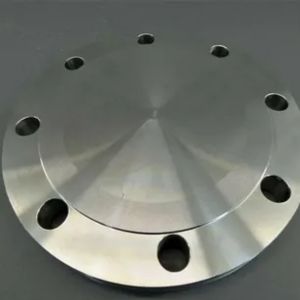

Harsh Flanges, a leading supplier in Mumbai, India, offers an extensive selection of AISI 4140 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Industries like oil and gas, petrochemicals, power generation, and the manufacture of heavy machinery that require high strength and dependability make extensive use of AISI 4140 flanges. They are perfect for heat exchangers, pumps, valves, and high-pressure piping systems that operate in harsh environments. These flanges are also used in offshore drilling operations, automotive parts, aerospace assemblies, and hydraulic systems. They are the go-to option for structural connections in crucial applications because of their exceptional fatigue resistance and capacity to tolerate shock loading. Long-lasting performance and operational safety are offered by AISI 4140 Flanges in high-stress and high-temperature settings.
Yes, we offer custom sizes for AISI 4140 Flanges to meet specific project needs. Our team at Harsh Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@harshflanges.co.in.
| STANDARD | UNS | WERKSTOFF NR. |
| AISI 4140 | G41400 | 1.7225 |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
